Industrial borescopes play a crucial role in inspecting nuclear power plant coolers. They enable non-destructive testing of the cooler's interior without disassembly or damage, ensuring the equipment's healthy operation. The following is a detailed analysis of using industrial endoscopes to inspect nuclear power plant coolers:

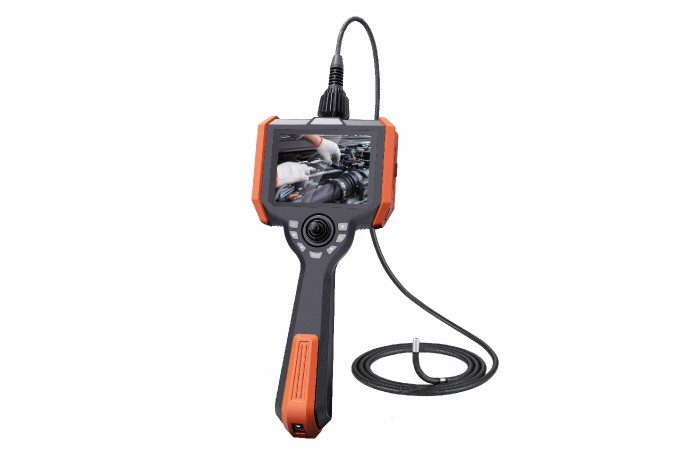

An industrial endoscope, also known as an endoscope, is a multidisciplinary tool. Its functions include probing deep into curved pipes, observing areas that cannot be directly seen, observing the internal structure and condition of sealed cavities, and enabling remote observation and operation. It is widely used in various sectors of modern core industries such as aviation, automotive, shipbuilding, electrical, chemical, power, gas, nuclear energy, and civil engineering.

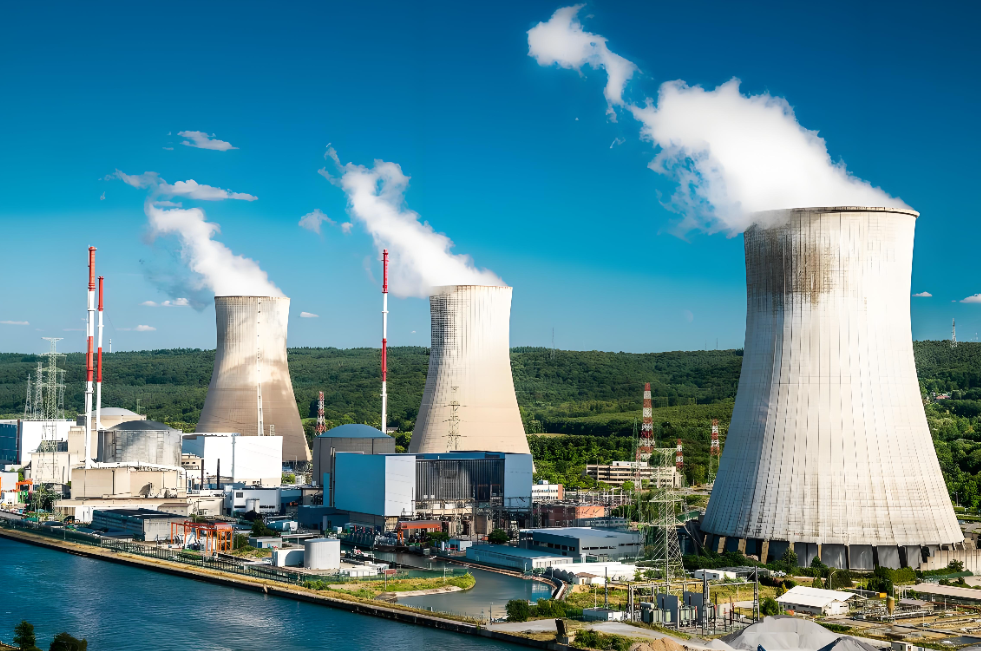

Nuclear power plant coolers are one of the key pieces of equipment in a nuclear power plant, responsible for transferring the heat generated by the reactor to the coolant, which is then released into the environment through the cooling system. Therefore, the health status of the cooler is directly related to the safe operation of the nuclear power plant. Regularly inspecting the interior of coolers for corrosion, scale buildup, and foreign objects is crucial for preventing malfunctions and extending equipment lifespan.
Inspection Content:
* Corrosion Detection: Industrial endoscopes allow for clear observation of corrosion within cooler pipes, including the degree, location, and type of corrosion.
* Scale Detection: Endoscopes can check for scale or other deposits within pipes, which can affect cooling efficiency and accelerate the corrosion process.
* Foreign Object Detection: Detects for foreign objects within pipes that may affect cooling performance, such as metal fragments and welding slag.
Technical Advantages:
High-Definition Imaging: Modern industrial endoscopes are typically equipped with high-resolution cameras and image processors, providing clear and bright images that allow inspectors to accurately assess the internal condition of the cooler.
Long-Distance Inspection: The insertion tube of the endoscope can reach several meters or even longer, allowing for deep insertion into the cooler for inspection.
Multifunctionality: Some high-end industrial endoscopes are also equipped with measurement and grasping functions, enabling quantitative analysis and foreign object removal during inspection.
Inspection Process:
Preparation Stage: Select the appropriate endoscope model and insertion tube length, and prepare necessary inspection tools and protective equipment.
Inspection Stage: Insert the endoscope into the cooler pipes, adjust the lens direction and focus using the control handle, and observe and record the internal condition of the pipes.
Analysis Stage: Based on the detected images and data, analyze the health status of the cooler and formulate corresponding maintenance and repair plans.
In practical applications, industrial endoscopes have been successfully used in the inspection of coolers in multiple nuclear power plants. For example, during the inspection process, corrosion areas, scale layers, and foreign objects were discovered in the pipes, and corresponding measures were taken in a timely manner, effectively ensuring the safe operation of the nuclear power plant.
In summary, industrial endoscopes are one of the important tools for inspecting the internal condition of nuclear power plant coolers. They have advantages such as high-definition imaging, long-distance inspection, and multifunctionality, enabling accurate assessment of the cooler's health status and providing strong support for subsequent maintenance and repair. With continuous technological advancements and expanding applications, the application prospects of industrial endoscopes in the nuclear power field will be even broader.
Shenzhen VSNDT Co., Ltd. has extensive experience in internal visual inspection and industrial endoscope product development. We can customize industrial endoscope products according to customer needs. If you have any needs for industrial endoscopes, please feel free to contact us.
