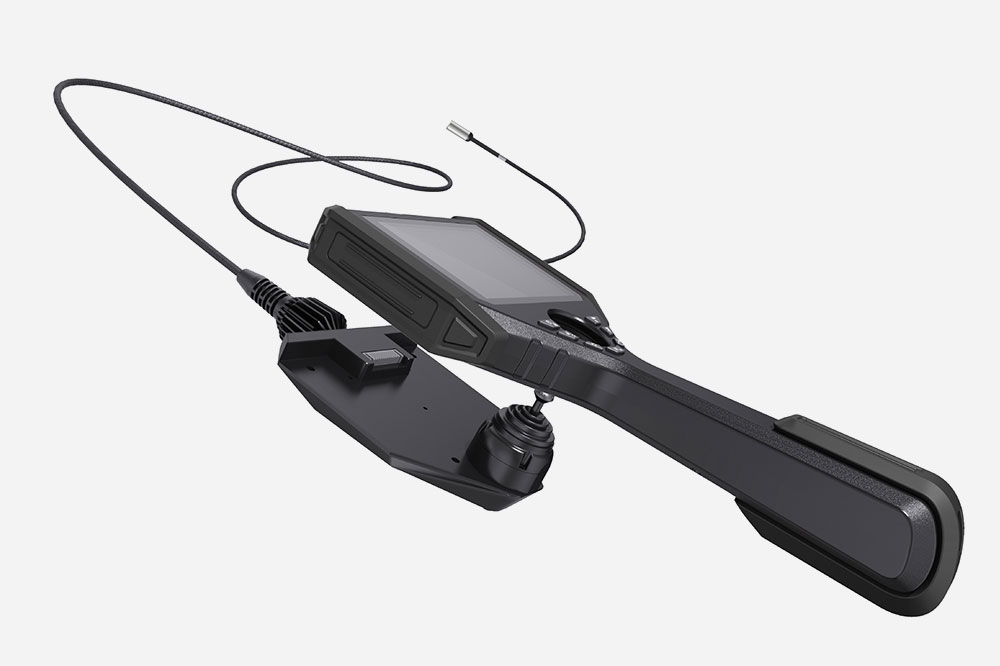

VS-RK series intelligent industrial videoscope
Probe diameter: 16.5mmCamera DiameterCamera Diameter
Pipeline length: 1m/2m
Articulation: 360° full way articulation
The thermal endoscopes can be used for covert investigation, investigation and rescue, customs inspection, security maintenance and other related situations detection
Pipeline length: 1m/2m
Articulation: 360° full way articulation
The thermal endoscopes can be used for covert investigation, investigation and rescue, customs inspection, security maintenance and other related situations detection
Introduction to VS-RK button
5" HD screen
720P HD real picture display
Megapixel
- Capture every detail with new technology camera
Optical fiber lighting
8 degree brightness
High density tungsten wire material
360 degree ergonomic designs structure with good durability and corrosion resistance
IP67 waterproof and oil proof
The snake tube has the performance of heat insulation and chemical corrosion protection line
and can easilycope with the working environment with oil and water stains
Battery module
Long term endurance, coping with various complex environments and improving efficiency
Application
It has a wide range of applications and can be used in a variety of endoscope detection scenarios
| Product name | VS-RK Infrared thermal imaging endoscope | ||
| Explain | VS-RK series infrared thermal imaging endoscope is an endoscope that can measure temperature accurately. The endoscope is equipped with megapixel camera, waterproof and oil proof wear resistant probe, and powerful software functions; This thermal endoscope adopts the combination of industrial endoscope technology and infrared thermal imaging technology, which can find abnormal hot spots through the outward facing infrared thermal imaging lens, and accurately locate the fault point; The thermal endoscopes can be used for covert investigation, investigation and rescue, customs inspection, security maintenance and other related situations detection | ||
| Advantage | Infrared thermal imaging | ||
| 360° full way articulation | |||
| 160X120 resolution | |||
| Support WIFI（Optional） | |||
| 5＂ HD large screen | |||
| Modular battery,Working time ≥ 4 hours | |||
| Function | Video recording function | ||
| Photograph function | |||
| Time Watermark | |||
| Support multiple system languages | |||
| Analog scale | |||
| Probe | Wear resistant four layer tungsten wire weave | ||
| 1、High density braid outer layer 2、Flexible polyurethane inner layer 3、EPD Merosion resistant tubes 4、Compressive steeling 5、Guide steel wire | |||
| Probe is waterproof, oil resistant and anti corrosion It can work normally in water or oil for 30 minutes continuously. | |||
| Camera | IP67 protection grade | ||
| Front view | |||
| Host | HD large screen | ||
| Use environment | Anti terrorist rescue，Covert investigation，Customs inspection，Criminal investigation and Drug detection | ||
| Product technical parameters | Host | Display | 5＂ HD large screen |
| Dimension | 350*155*59mm | ||
| Output | TF card slot, HDMI interface, Micro USB | ||
| Power | Modular battery,Use≥4 hours | ||
| IP Grade | IP54 | ||
| Operating temperature | -20℃~50℃, Low temperature without preheating | ||
| Storage Temperature | -20℃-60℃ | ||
| Relative Humidity | Max 90%, No condensation | ||
| Storage card | TF card 32GB(Other optional) | ||
| Camera Probe | Camera Diameter | 16.5mm | |
| resolution | 160X120 | ||
| Length | 1m/2m | ||
| Articulation | 360° full way articulation | ||
| Max swing head angle | ≥180° | ||
| DOF | 0~infinity | ||
| FOV | 120° | ||
| Viewing angle | Front view | ||
| Operating temperature | -20℃~70℃ | ||
| IP Grade | IP67 | ||
| Temperature measurement range | -20~150℃ | ||
| Temperature measurement function | Center point temperature measurement | ||
| Temperature measurement accuracy | -20~0℃：±7℃ / 0~35℃：±5℃ / 35~150℃：±3℃ or ±3% | ||
| Radiation rate | Fixed 0.95 | ||
| System / software | Image / video format | Image:JPEG(JPG), Video:AVI | |
| Image control | Freezing, zooming, photographing, flipping, video playback and analog ruler functions | ||
| System language | Chinese,English,German,French,Russian,Spanish,Japanese and customized |
