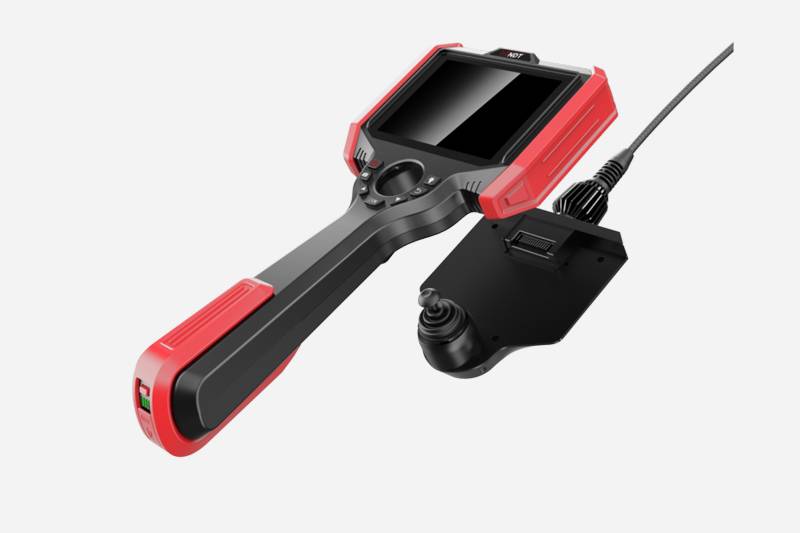

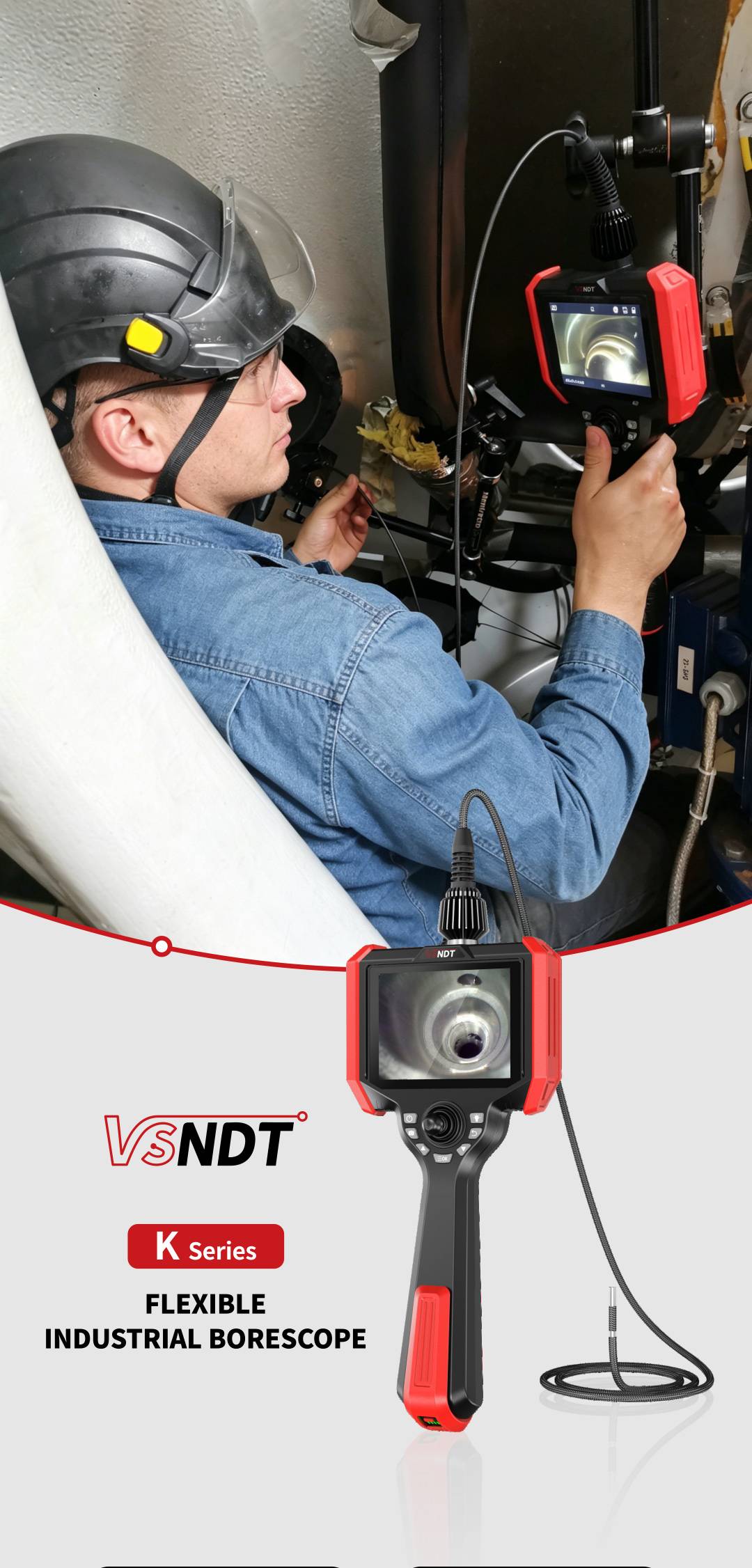

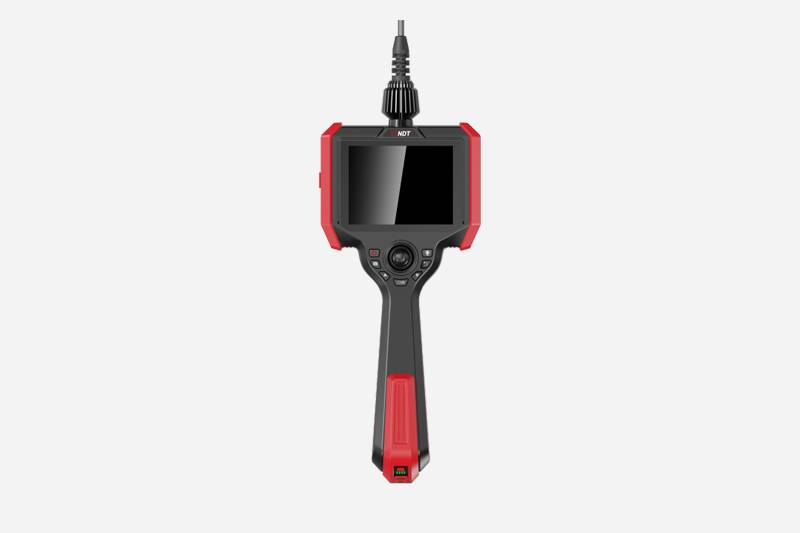

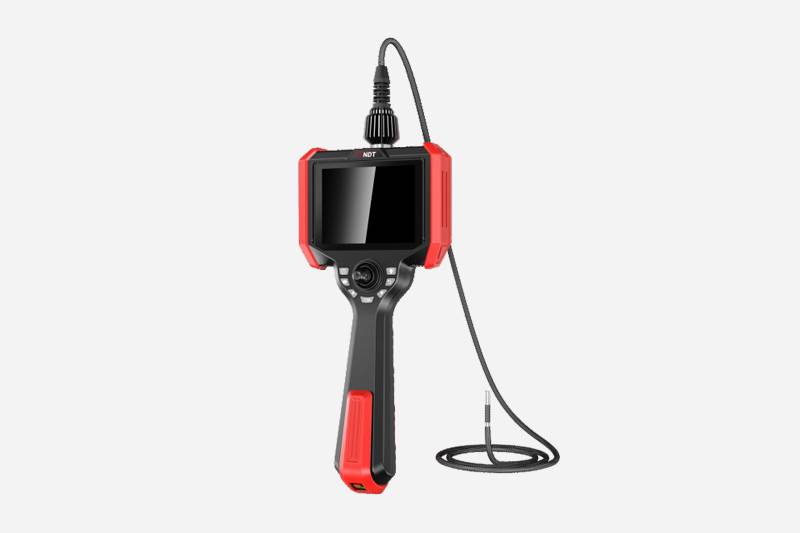

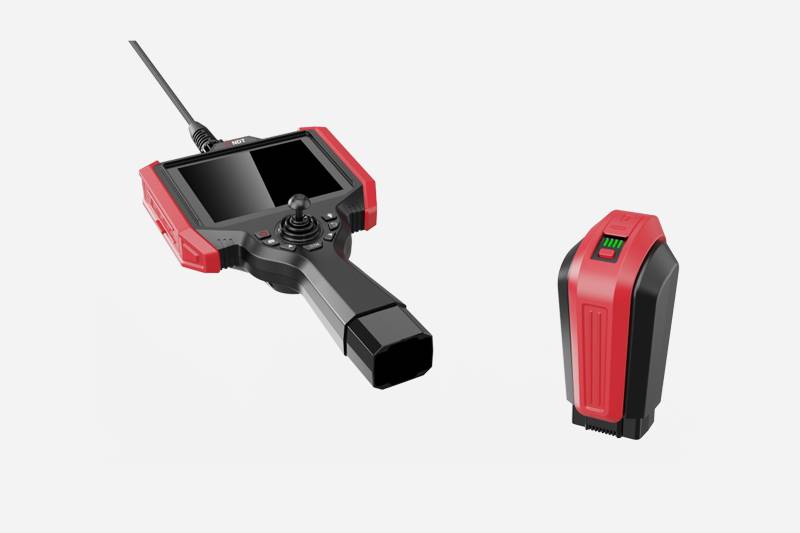

VS-K series intelligent industrial videoscope
High-definition portable, video industrial videoscope
Probe diameter: 0.95-8mm
Pipeline length: 0.5-10m, the longest customized 30m
Camera pixel: ≥1 million
suitable for defect detection in industries such as automobile manufacturing, wind power, ship power, and pharmaceutical manufacturing
Probe diameter: 0.95-8mm
Pipeline length: 0.5-10m, the longest customized 30m
Camera pixel: ≥1 million
suitable for defect detection in industries such as automobile manufacturing, wind power, ship power, and pharmaceutical manufacturing

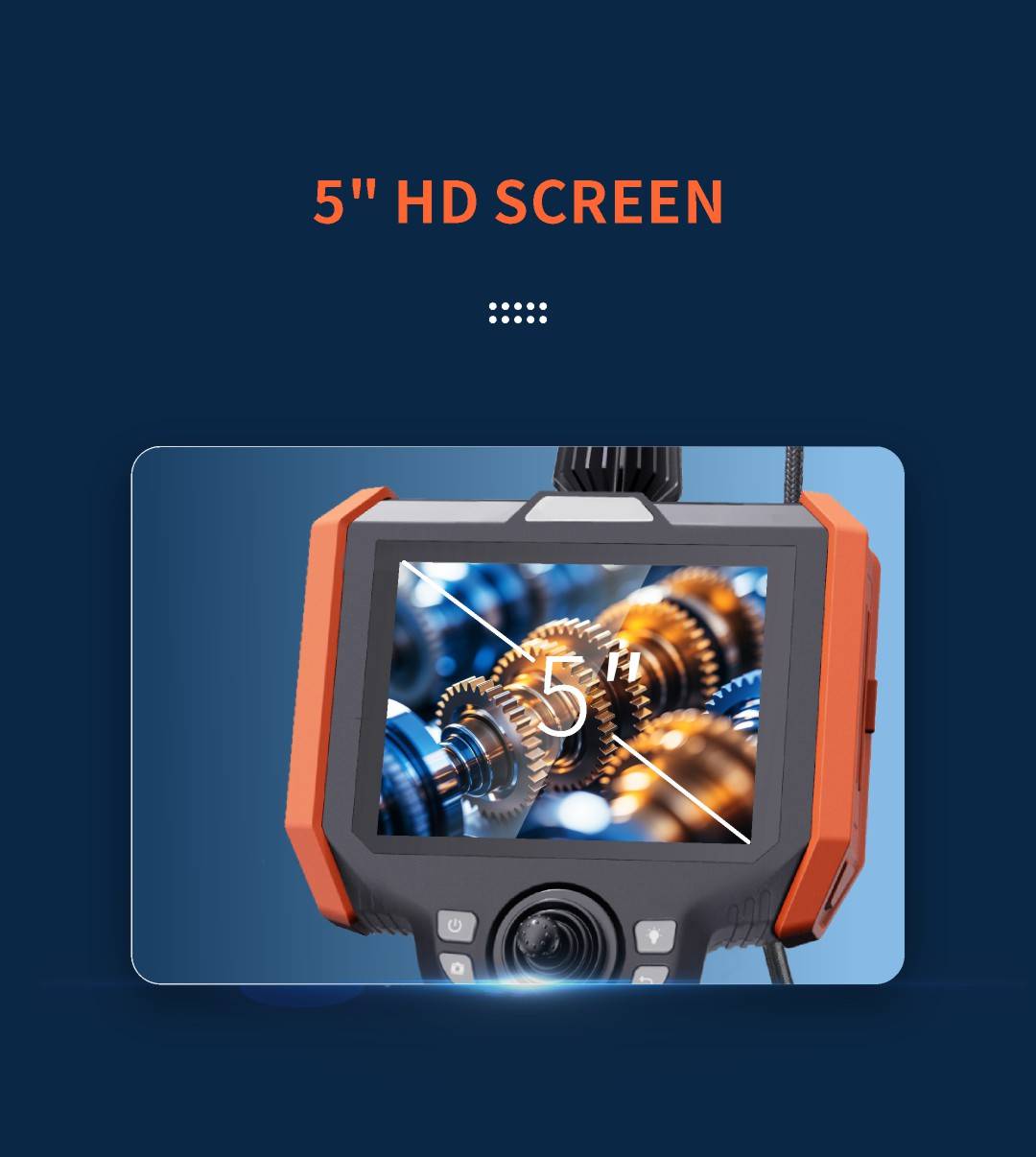

5" HD screen
720P HD real picture display

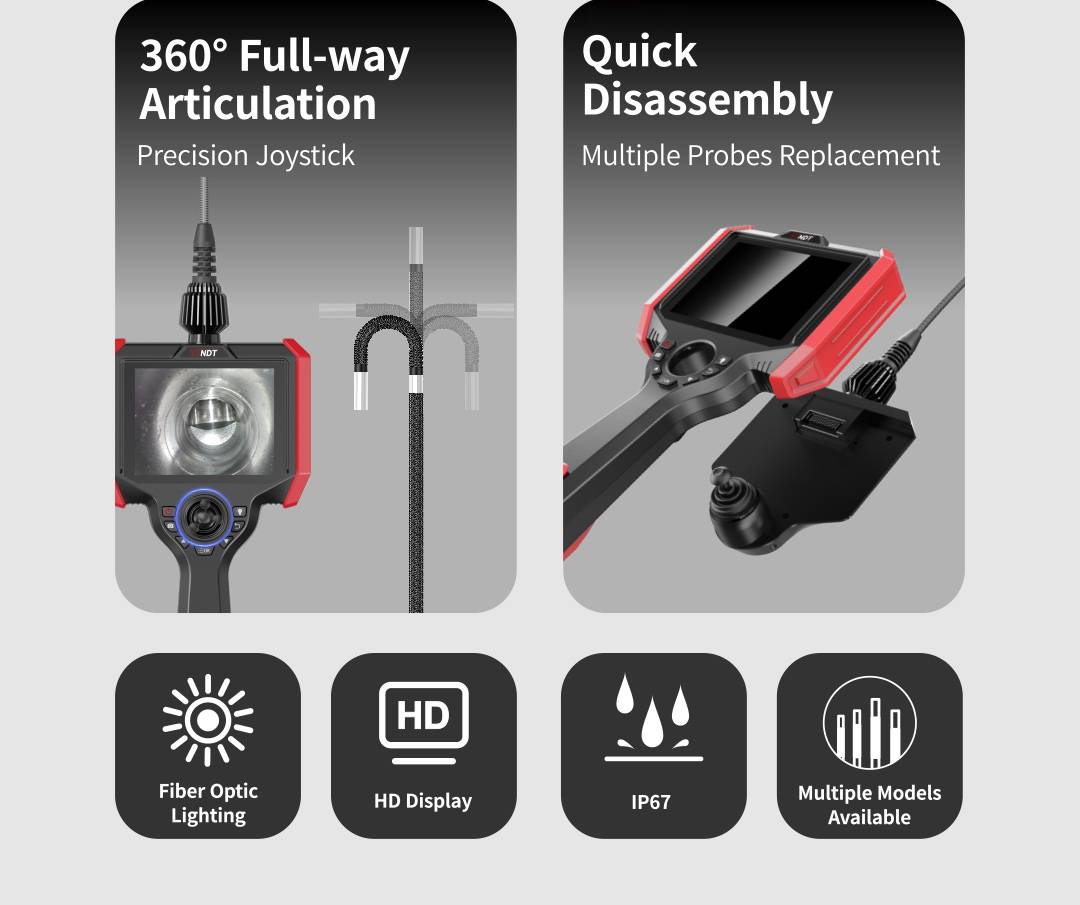

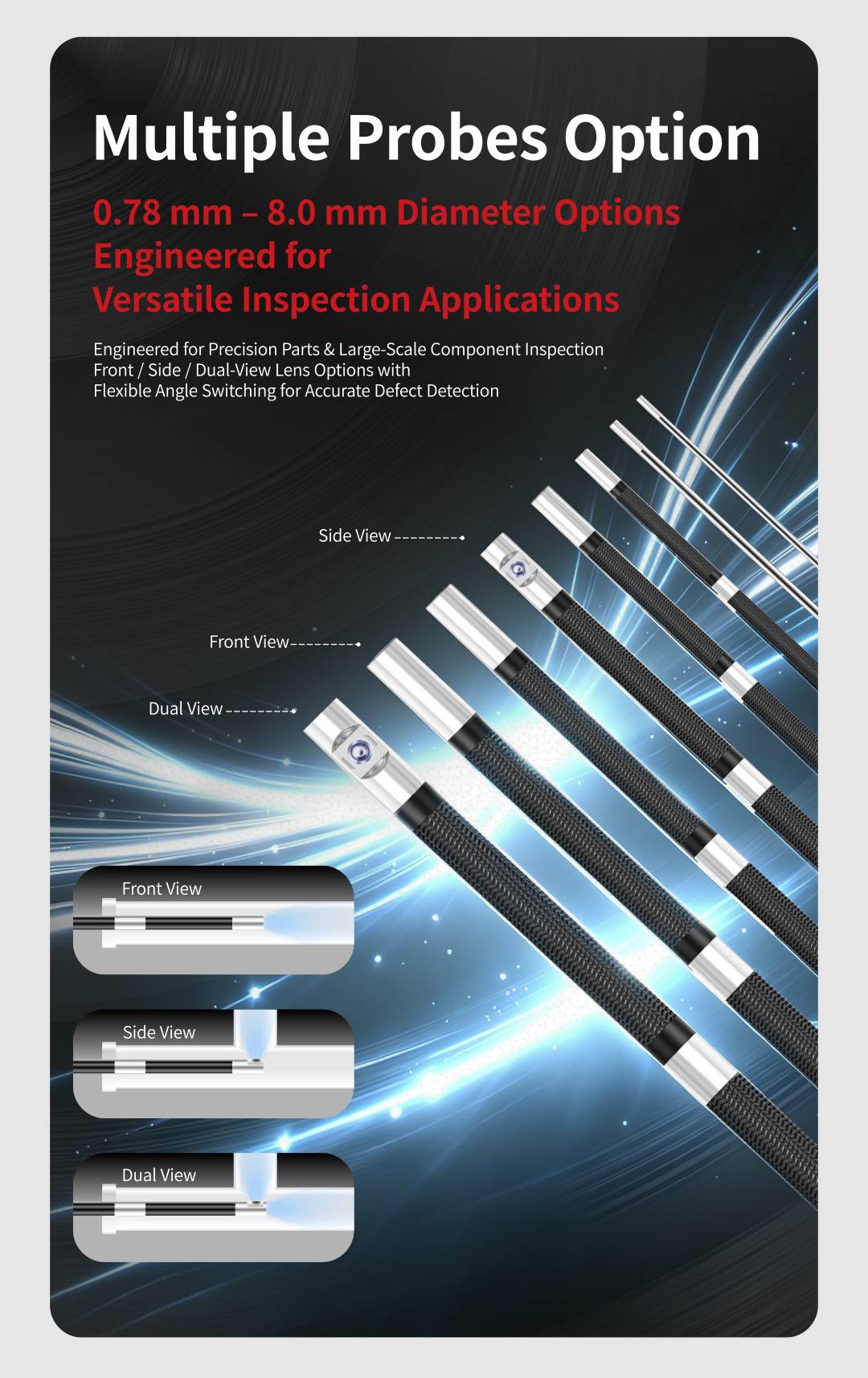

INTERCHANGEABLE PROBES
The probes ofdifferent specifications can be replaced accordingto different testing environments

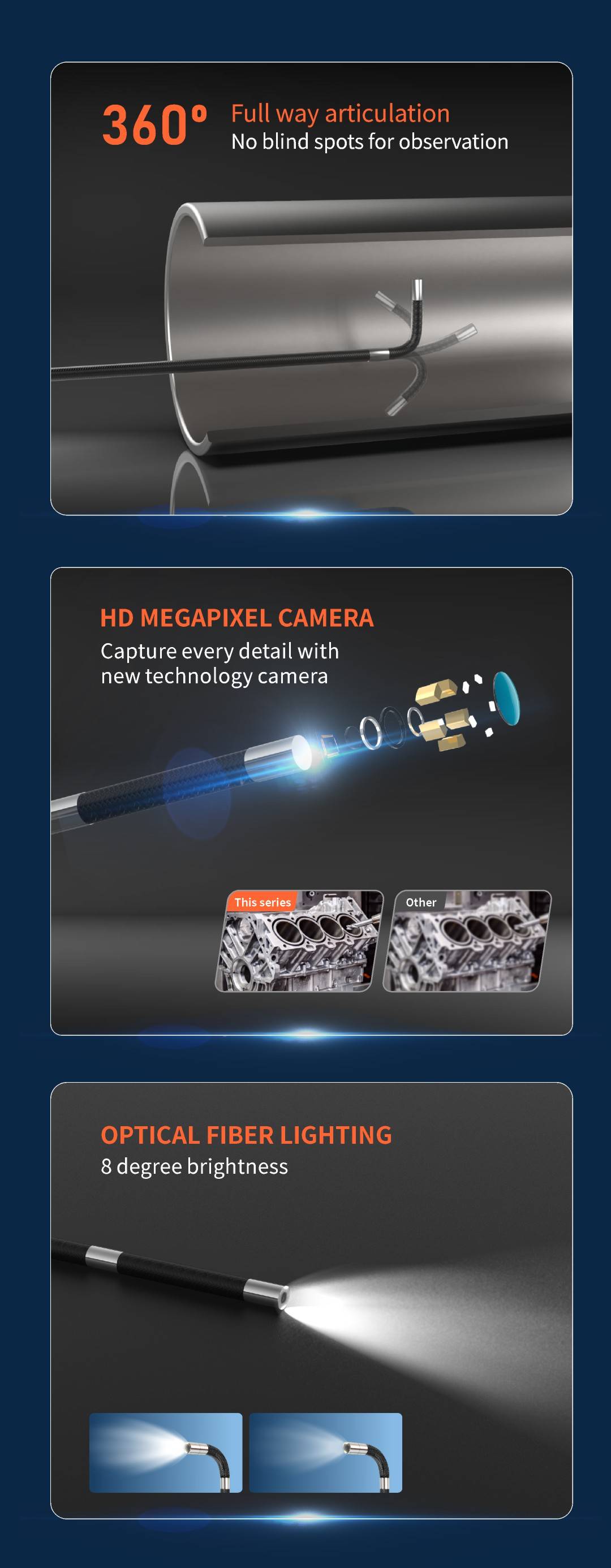

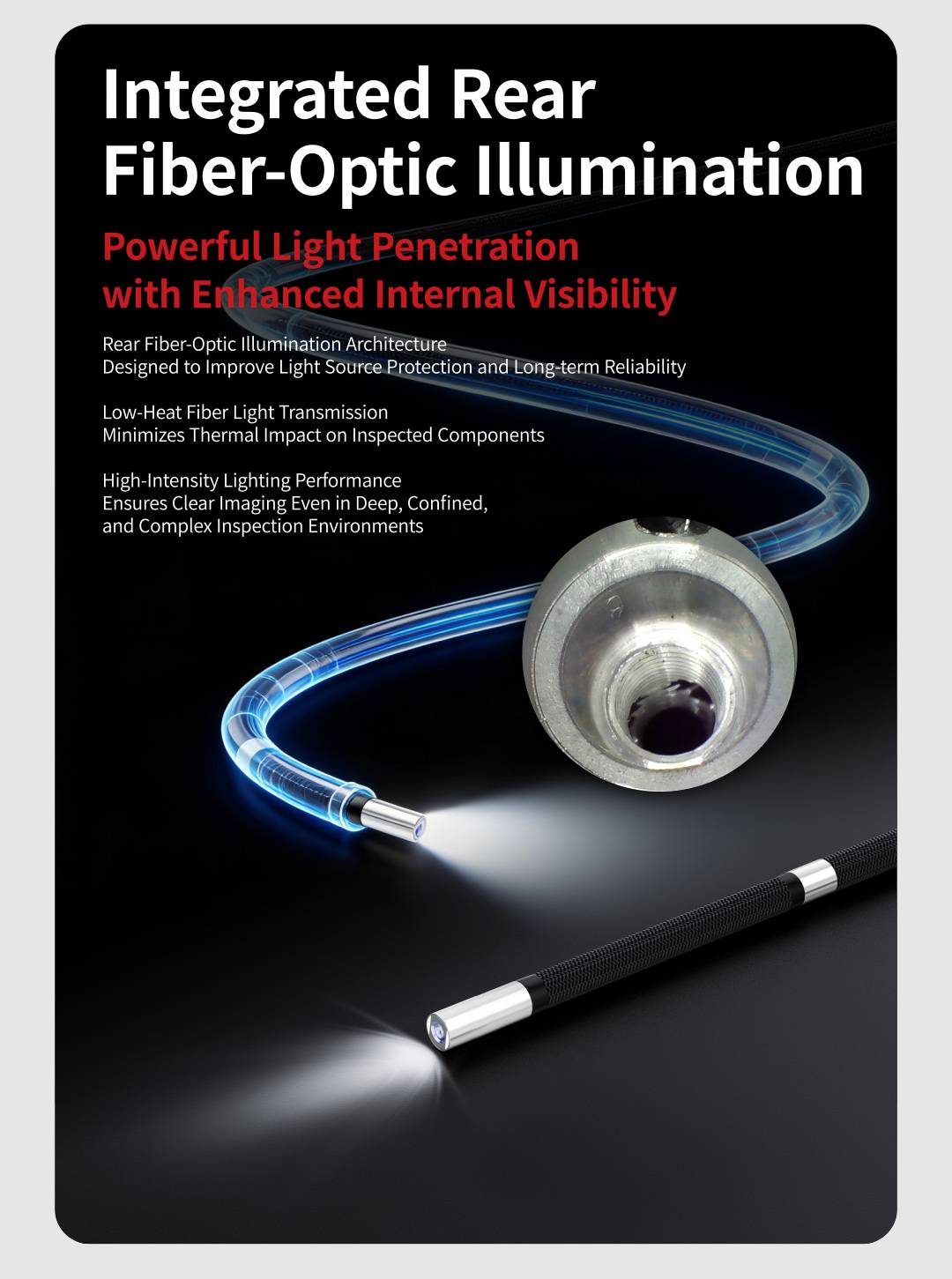

Optical fiber lighting
8 degree brightness
IP67 waterproof and oil proof
The snake tube has the performance of heat insulation and chemical corrosion protection line
and can easilycope with the working environment with oil and water stains

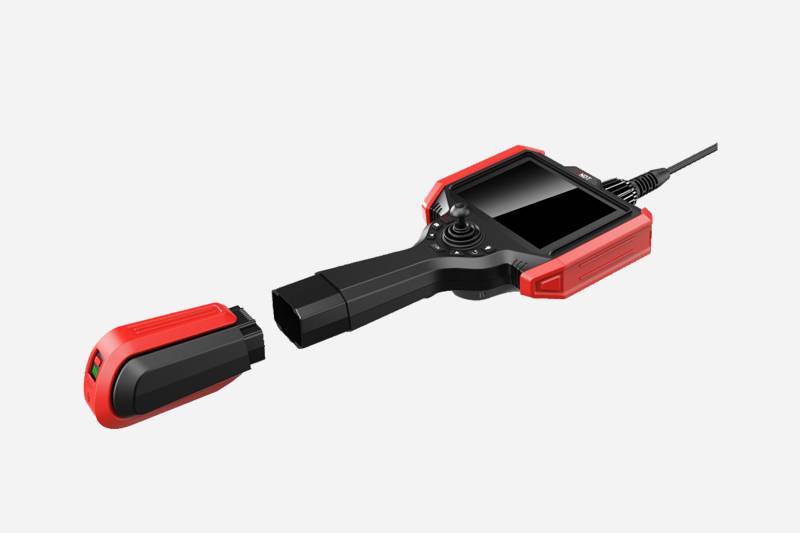

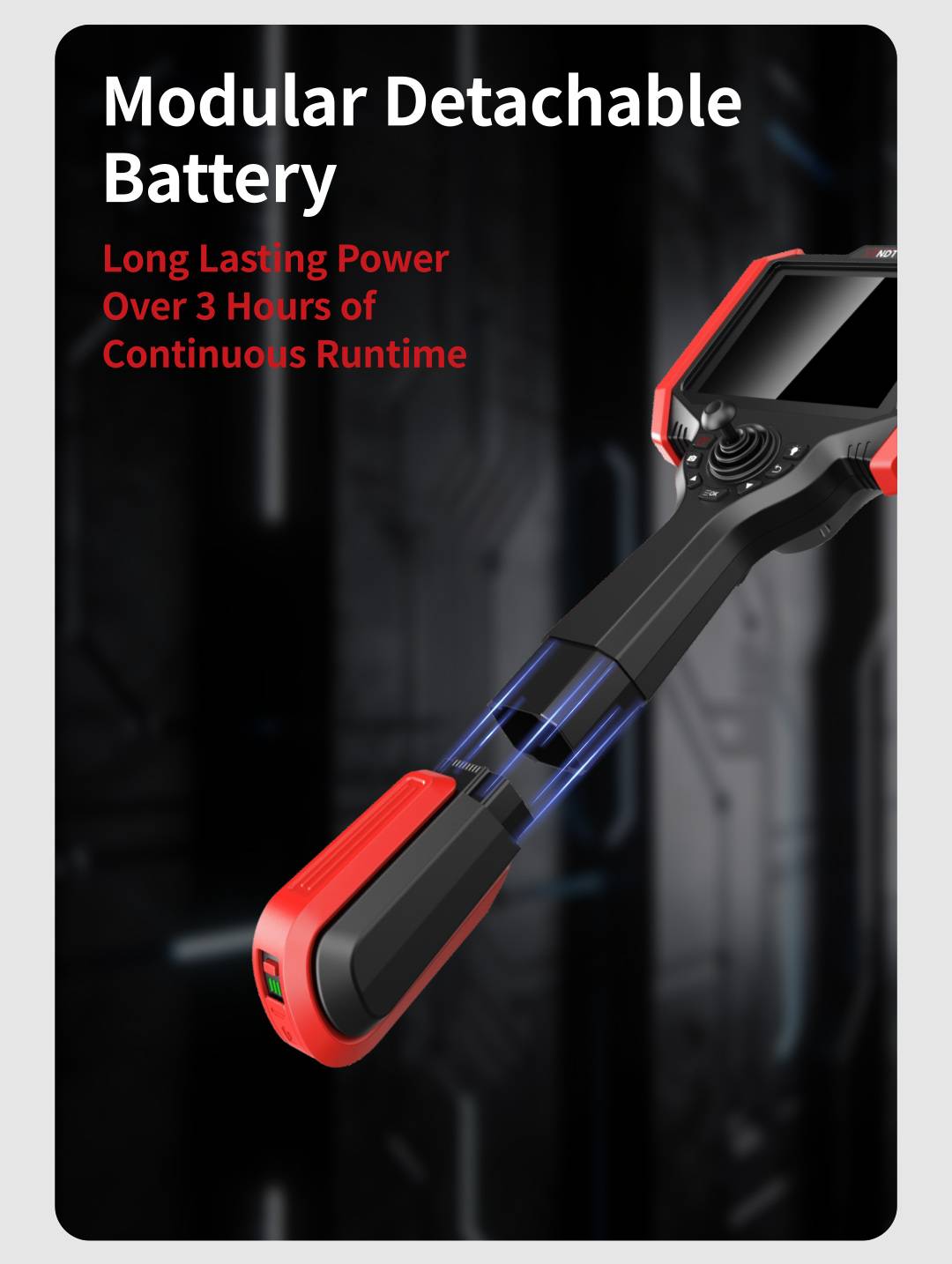

Battery module
Long term endurance, coping with various complex environments and improving efficiency

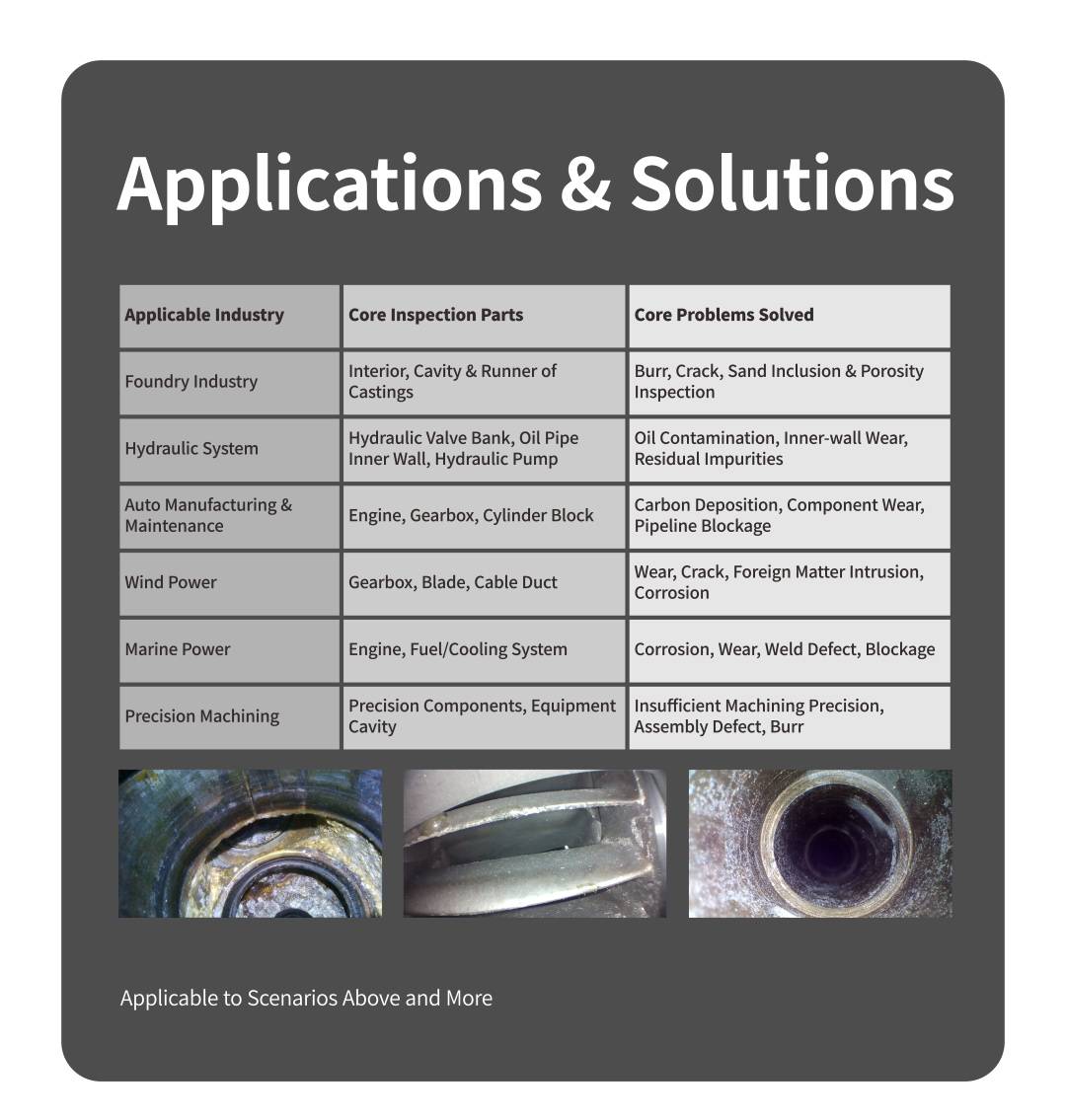

Application
It has a wide range of applications and can be used in a variety of endoscope detection scenarios
| Prduct Name | VS-K Video endoscope | ||
| Explain | VS-K series Video endoscope is a good performance mega pixel industrial video endoscope launched by VSNDT. It is equipped with a 5 inch industrial grade display, with both of front view and side view dual lens, with a tungsten wire braided tube,the cable is drop resistant and wear resistant.With the 360° full way articulation function, it can intuitively judge the internal defect of various complex workpieces. 0.95-8mm diameter probes can be quickly replaced, which can cope with various aperture conditions. it can realize high temperature warning function,WIFI wireless transmission and other customized functions,suitable for defect detection in industries such as automobile manufacturing, wind power, ship power, and pharmaceutical manufacturing. | ||
| Advantage | 360° full way articulation | ||
| Rear high power LED optical fiber illumination | |||
| Quick to interchange different types of probes | |||
| Support WIFI（Optional） | |||
| 0.95mm~8mm probe diameters for optional | |||

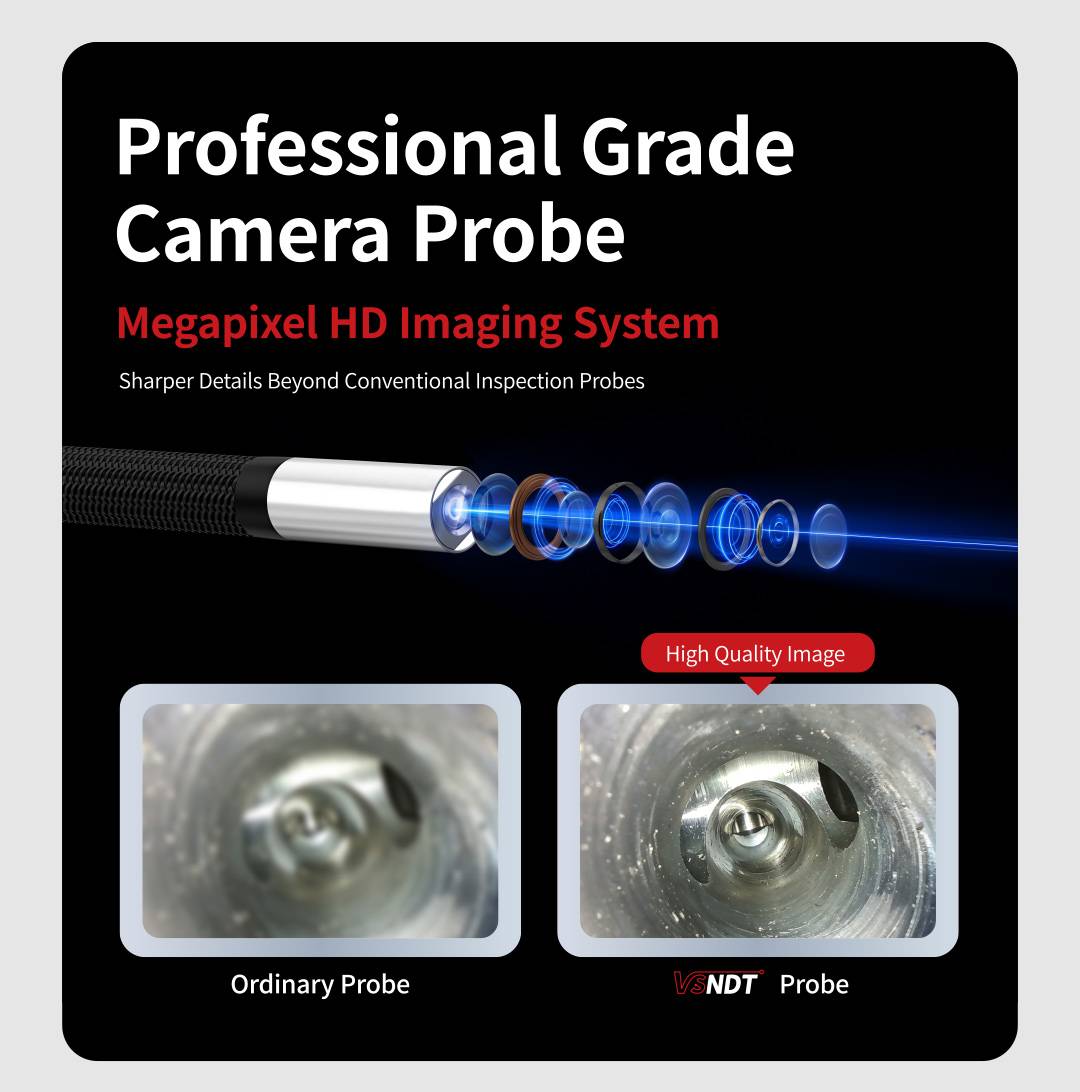

| Mega pixel HD camera | |||
| 5＂ HD large screen | |||
| Modular battery,Working time ≥ 4 h | |||
| Support temperature warning Display of temperature measurement system (optional) | |||

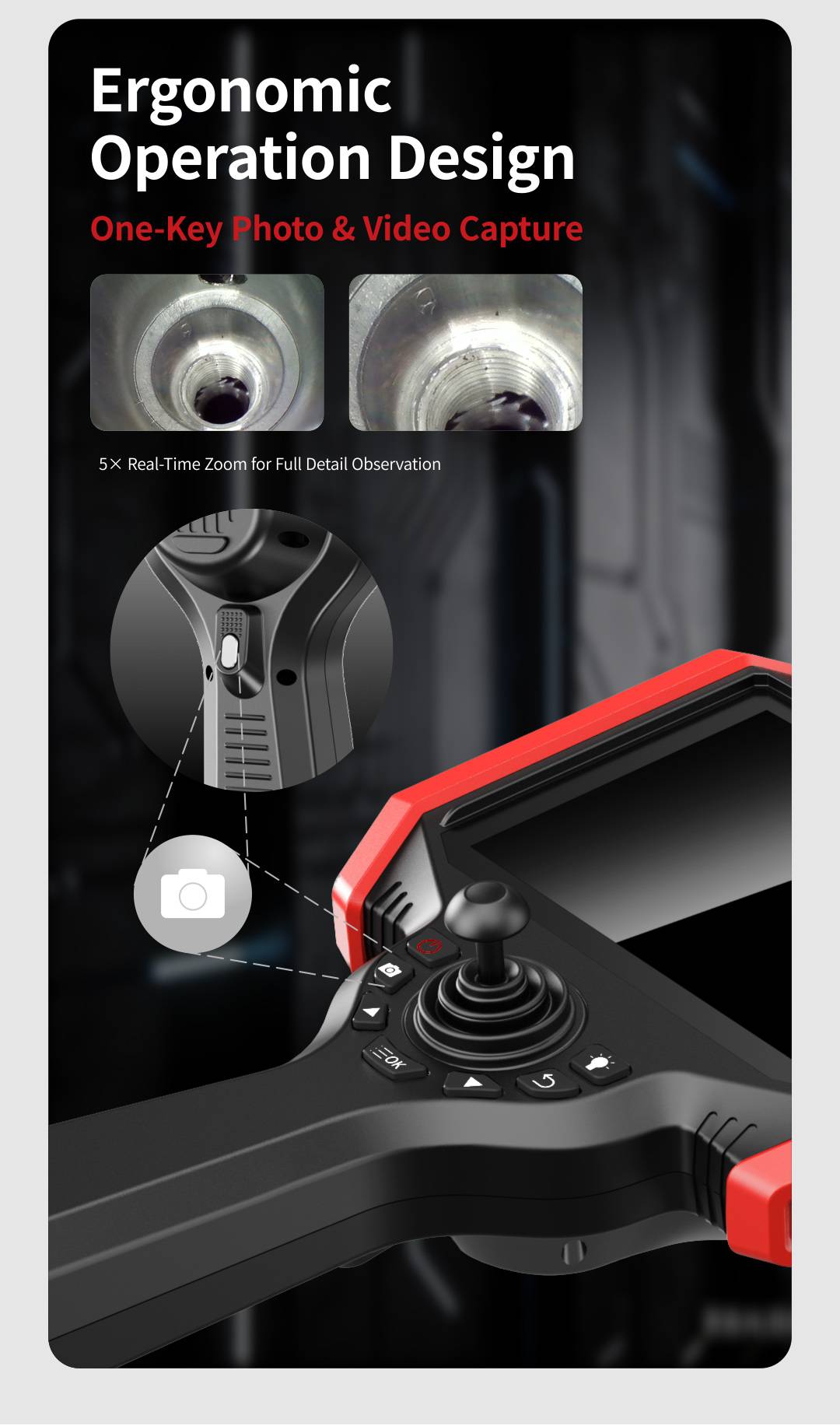

| Function | Video recording function | ||
| Photograph function | |||
| Time Watermark | |||
| 8 level brightness | |||
| Support multiple system languages | |||
| Analog scale | |||

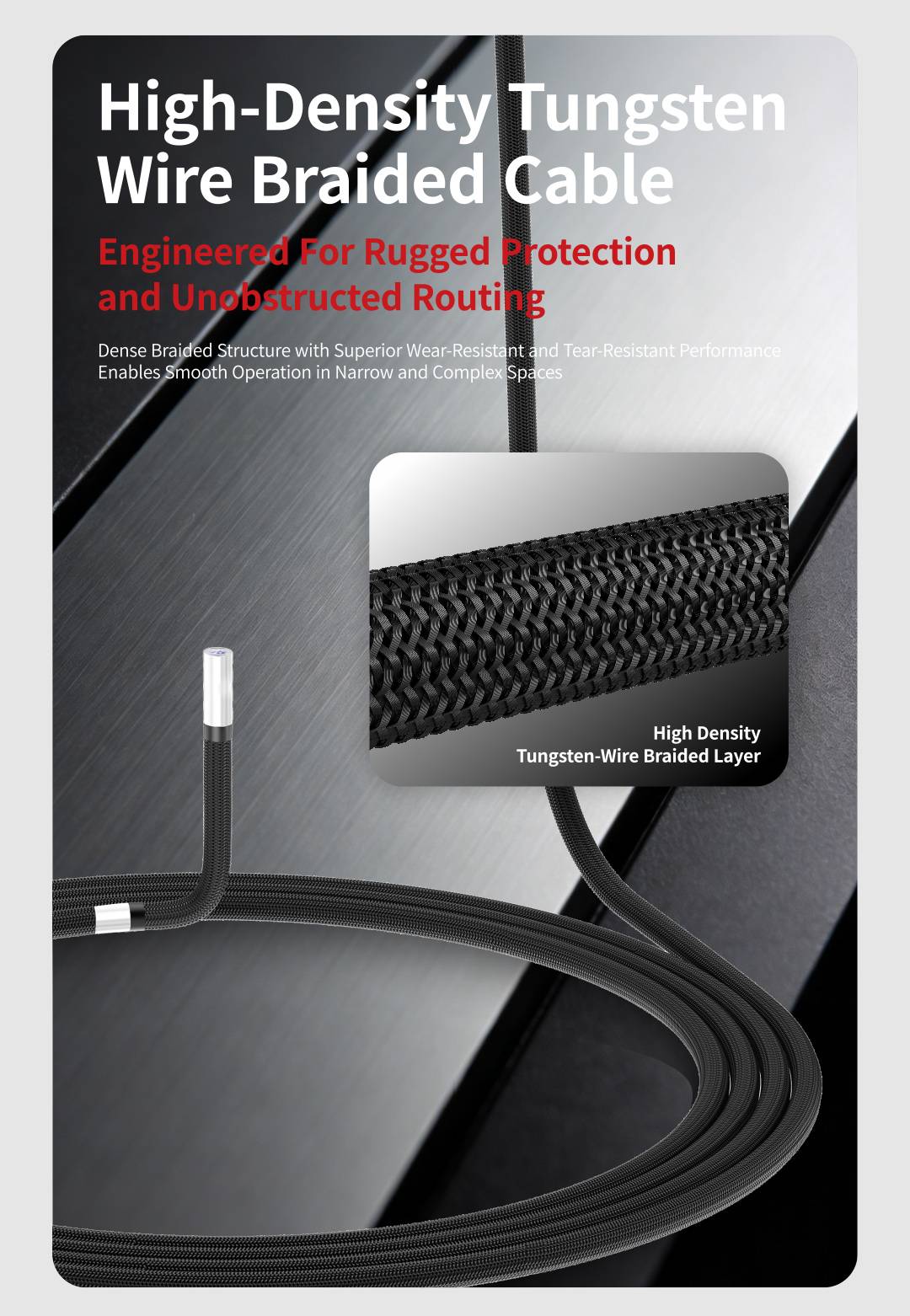

| Probe | Wear resistant four layer tungsten wire weave | ||
| 1、High density braid outer layer 2、Flexible polyurethane inner layer 3、EPD Merosion resistant tubes 4、Compressive steeling 5、Guide steel wire | |||
| Probe is waterproof, oil resistant and anti-corrosion It can work normally in water or oil for 30 minutes continuously. | |||
| Camera | IP67 protection grade | ||
| Front view/Side view/Dual view probe | |||
| Host | HD large screen | ||
| Use environment | Pipeline inspection ，Parts inspection，Casting industry，Precision machining，Mechanical processing | ||

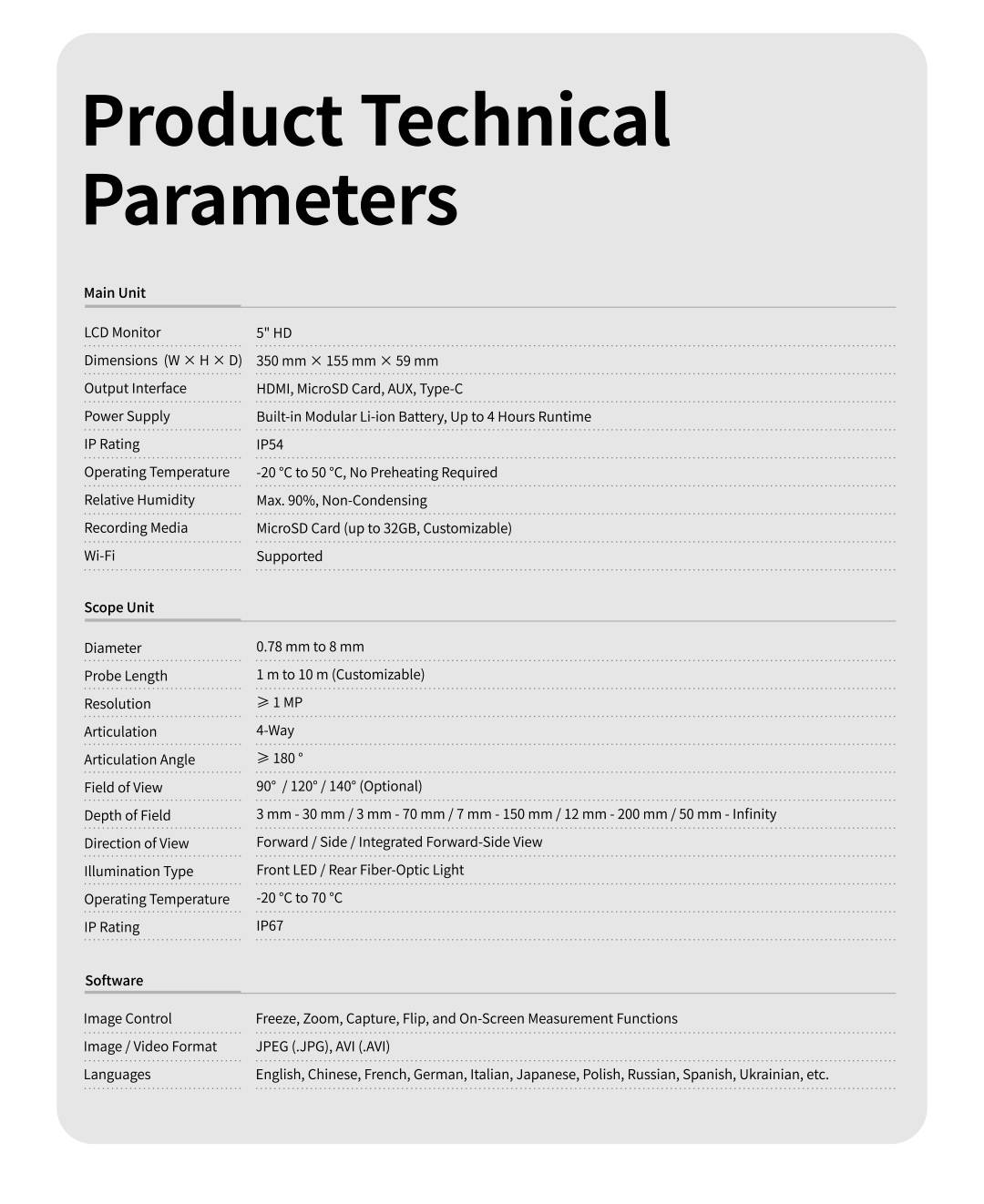

| Product technical parameters | Host | Display | 5＂ HD large screen |
| Dimension | 350*155*59mm | ||
| Output | TF card slot, HDMI interface, Micro USB | ||
| Power | Modular battery,Working time ≥ 4 h | ||
| IP Grade | IP54 | ||
| Operating temperature | -20℃~50℃, Low temperature without preheating | ||
| Storage Temperature | -20℃-60℃ | ||
| Relative Humidity | Max 90%, No condensation | ||
| Storage card | TF card 32GB(Other customized) | ||
| Camera Probe | Probe Diameter | 0.95mm~8mm | |
| Pixel | ≥1.0MP | ||
| Length | 1~10m(other customized) | ||

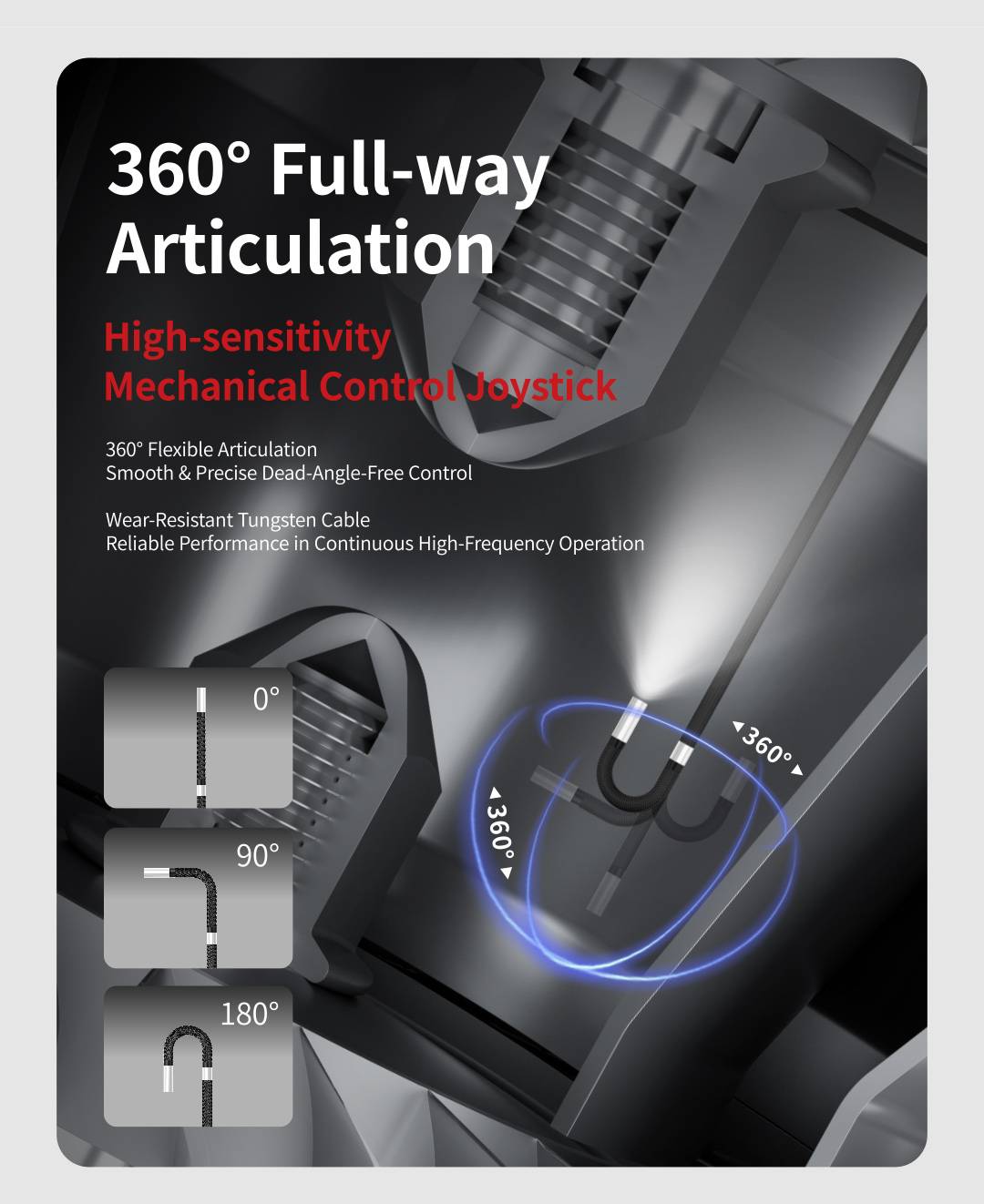

| Articulation | 360° all way articulation | ||
| Max swing head Angle | ≥180° | ||
| DOF | 3mm~30mm/3mm~70mm/7~150mm/12~200mm/50~infinity | ||
| FOV | 90°/120°/140°(Optional) | ||
| Viewing angle | Front/ side/Front and side (dual) switched | ||
| Illumination | Rear high power LED optical fiber transmission | ||
| Operating Temperature | -20℃~70℃ | ||
| IP Grade | IP67 | ||
| System / software | Image / video format | Image:JPEG(JPG), Video:AVI | |
| Image control | Freezing, zooming, photographing, flipping, video playback and analog ruler functions | ||
| System language | Chinese,English,German,French,Russian,Spanish,Japanese and customized |
