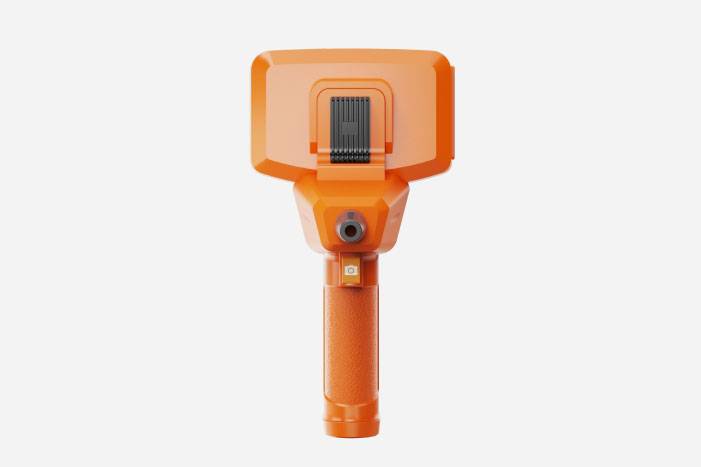

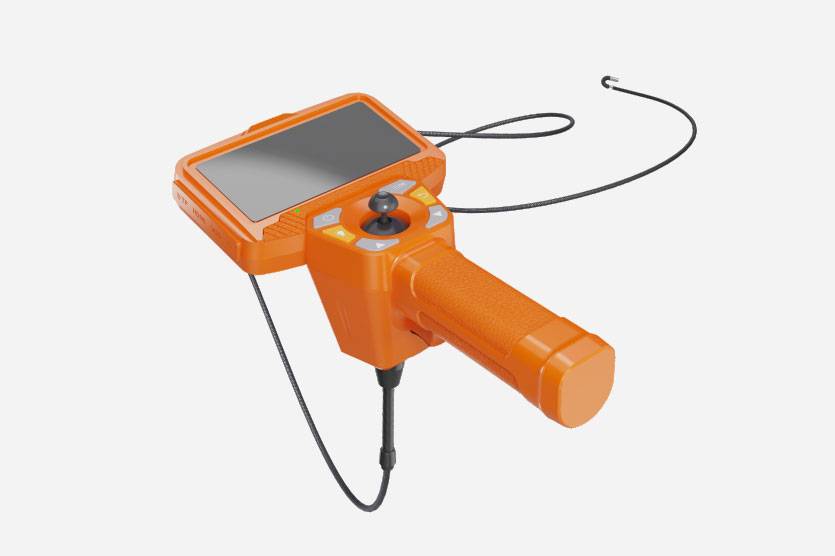

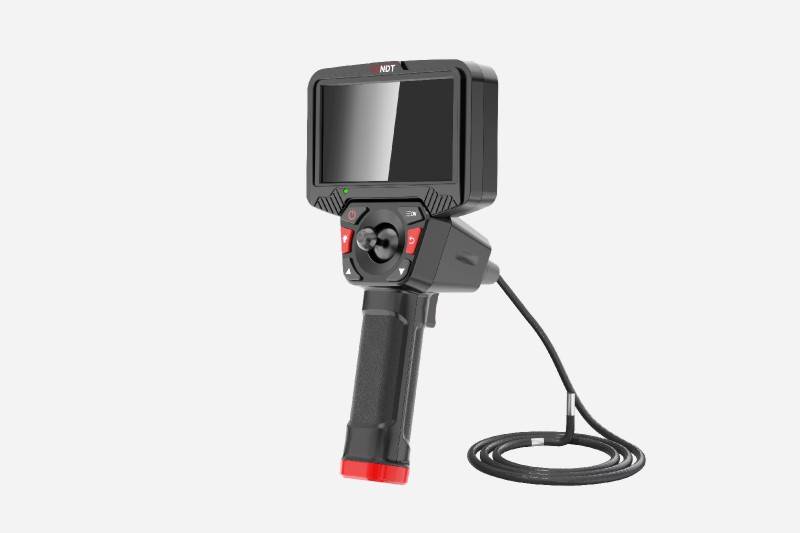

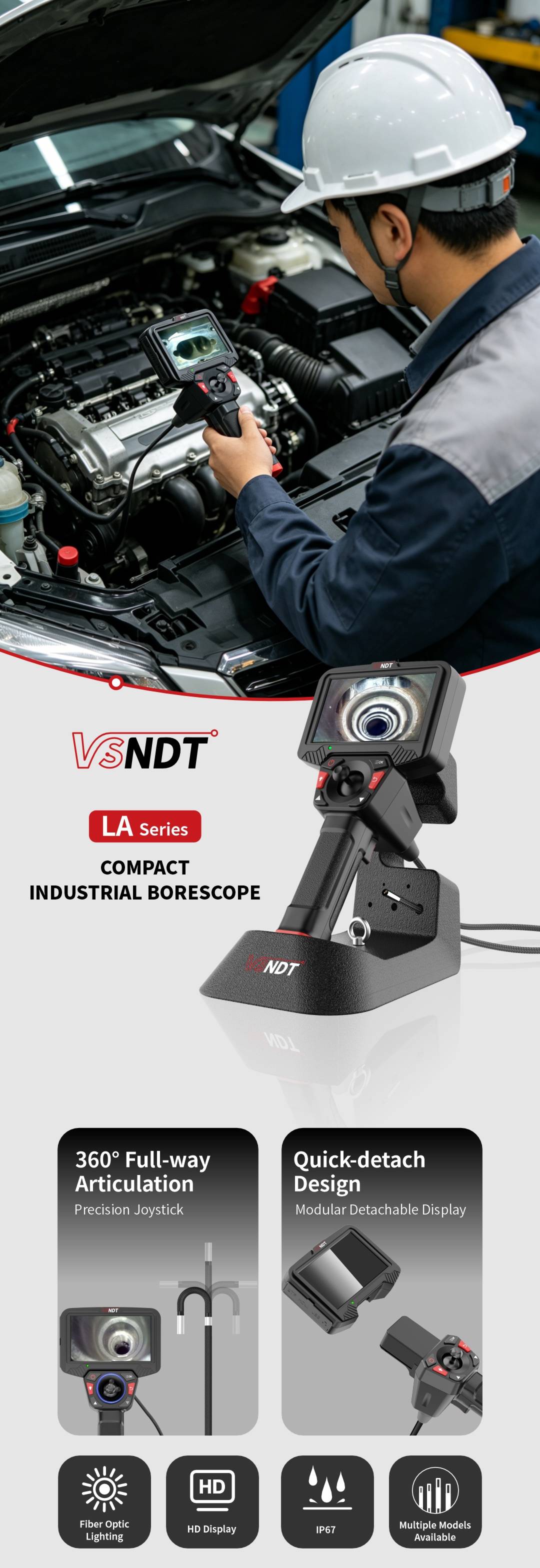

VS-LA series Portable industrial endoscope

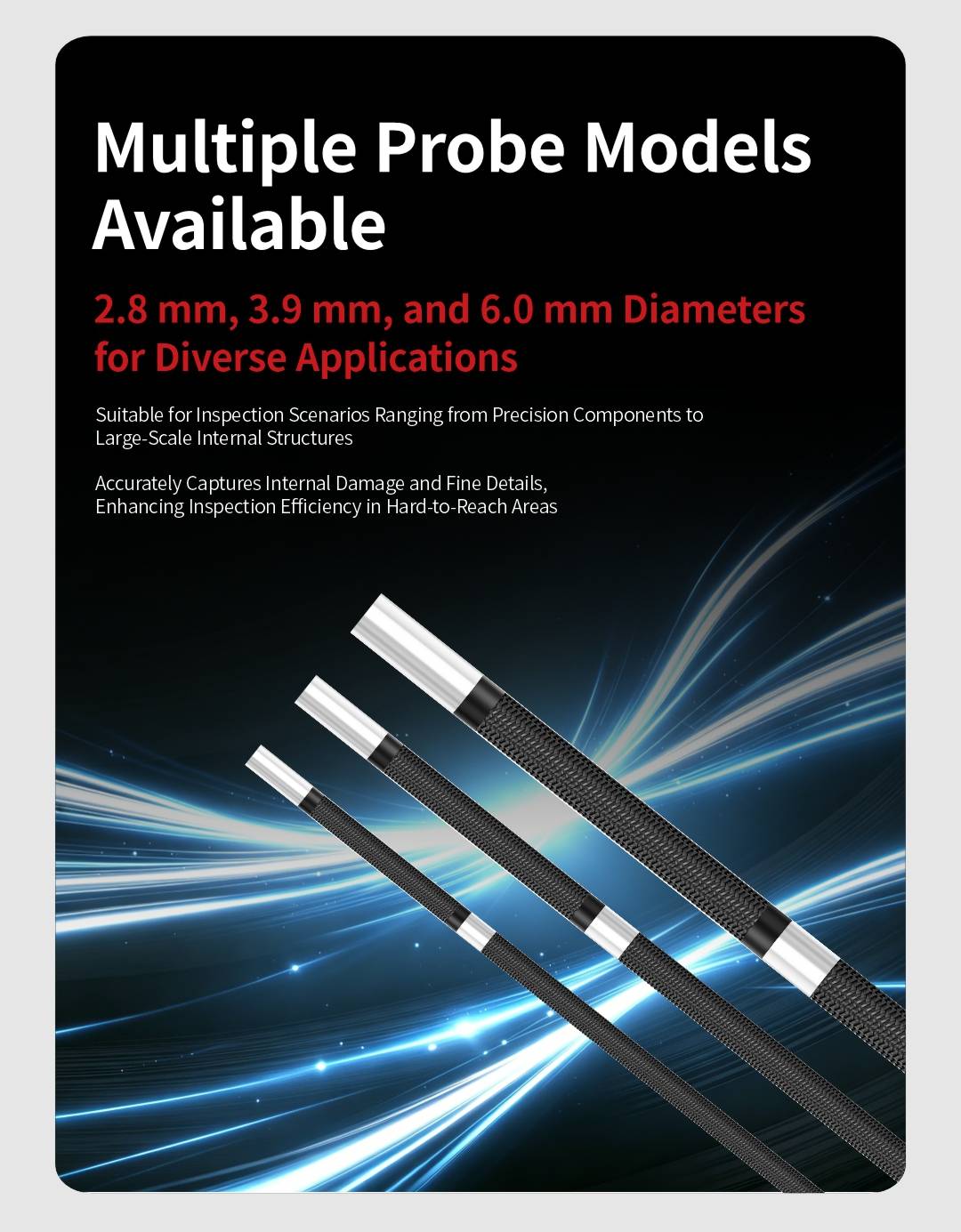

Probe diameter: 2.8/3.9/6mm
Pipeline length: 1~3m
DOF:3-70mm/5-100mm/8-150mm/12-200mm
Suitable for automobile manufacturing, medical pipelines, ship power, municipal drainage, mechanical casting, construction bridges, precision casting, special inspection industry, aerospace, stone chemical industry, energy power, rail transit, search and rescue, security and drug control, automobile maintenance, secret investigation, and product maintenance
Pipeline length: 1~3m
DOF:3-70mm/5-100mm/8-150mm/12-200mm
Suitable for automobile manufacturing, medical pipelines, ship power, municipal drainage, mechanical casting, construction bridges, precision casting, special inspection industry, aerospace, stone chemical industry, energy power, rail transit, search and rescue, security and drug control, automobile maintenance, secret investigation, and product maintenance
Introduction to VS-LA button

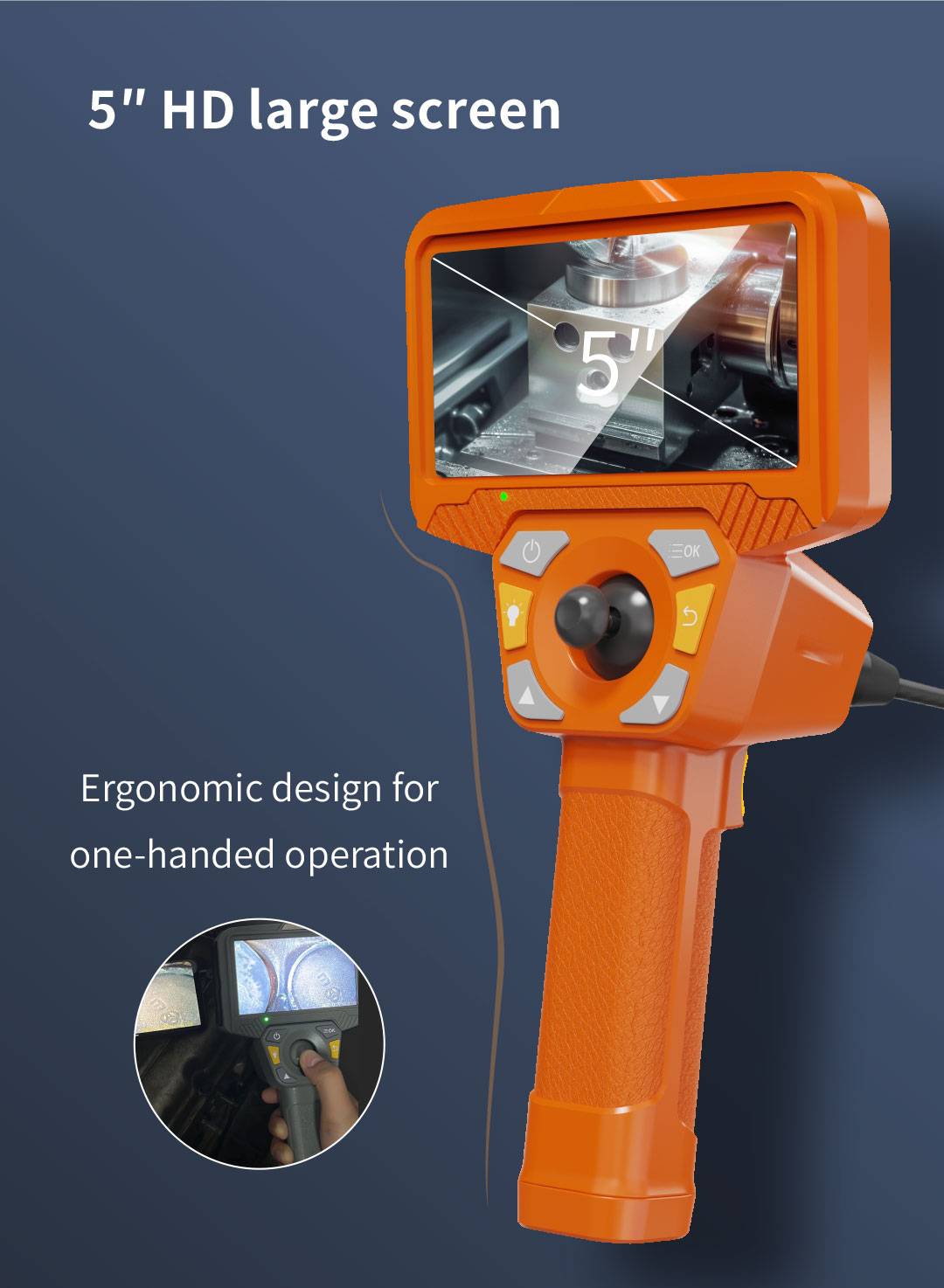

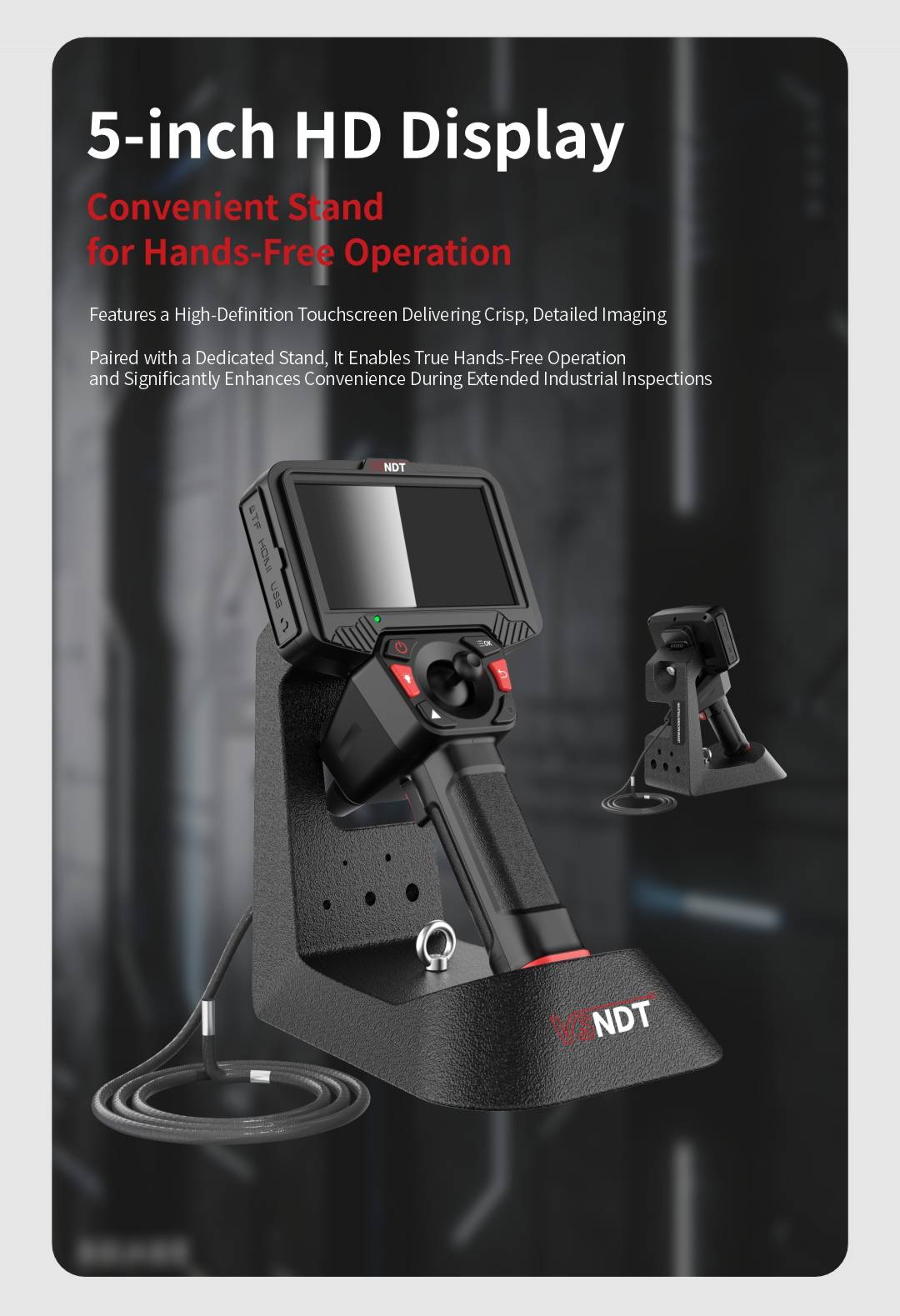

5" HD large screen

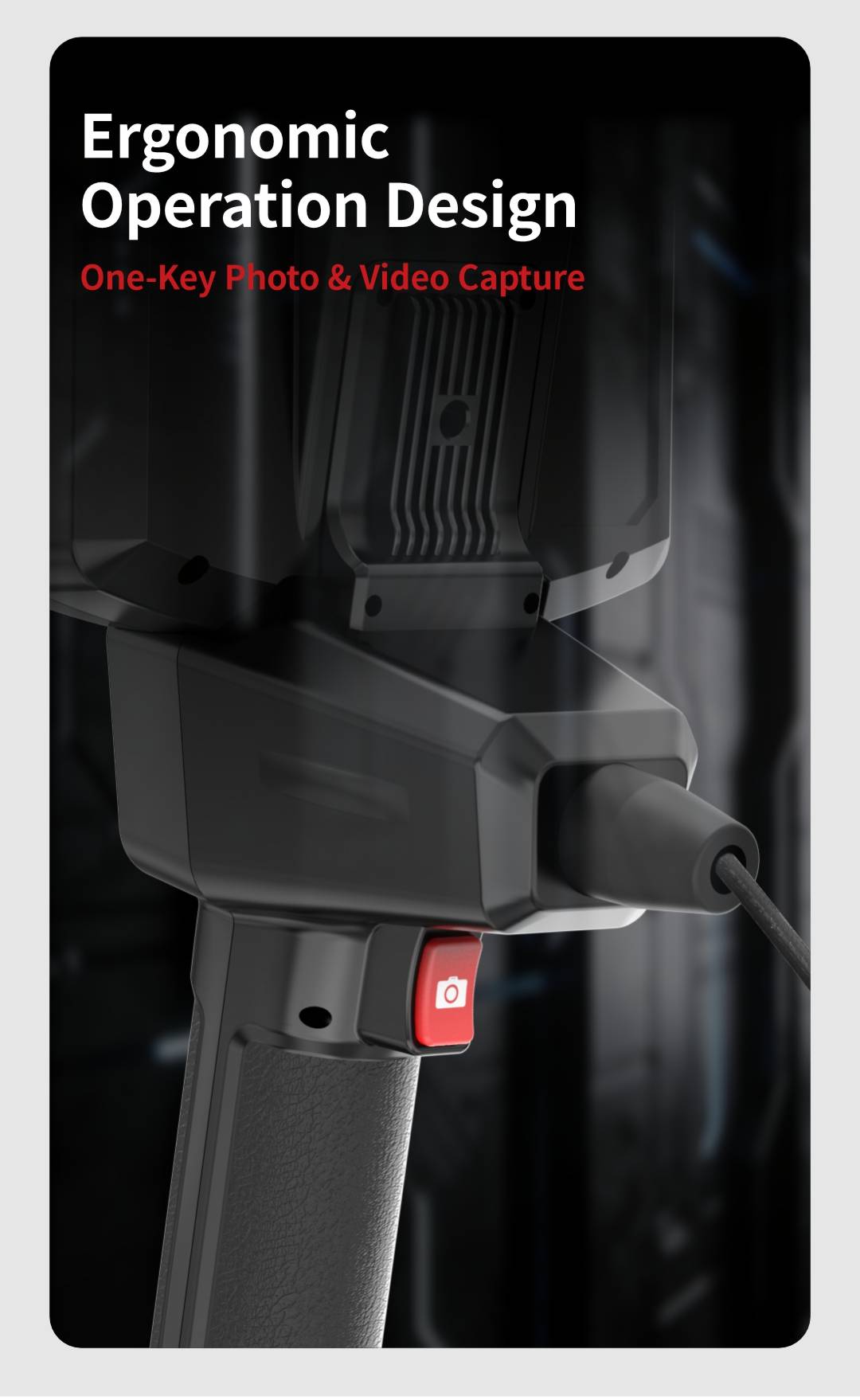

Ergonomic design for one-handed operation

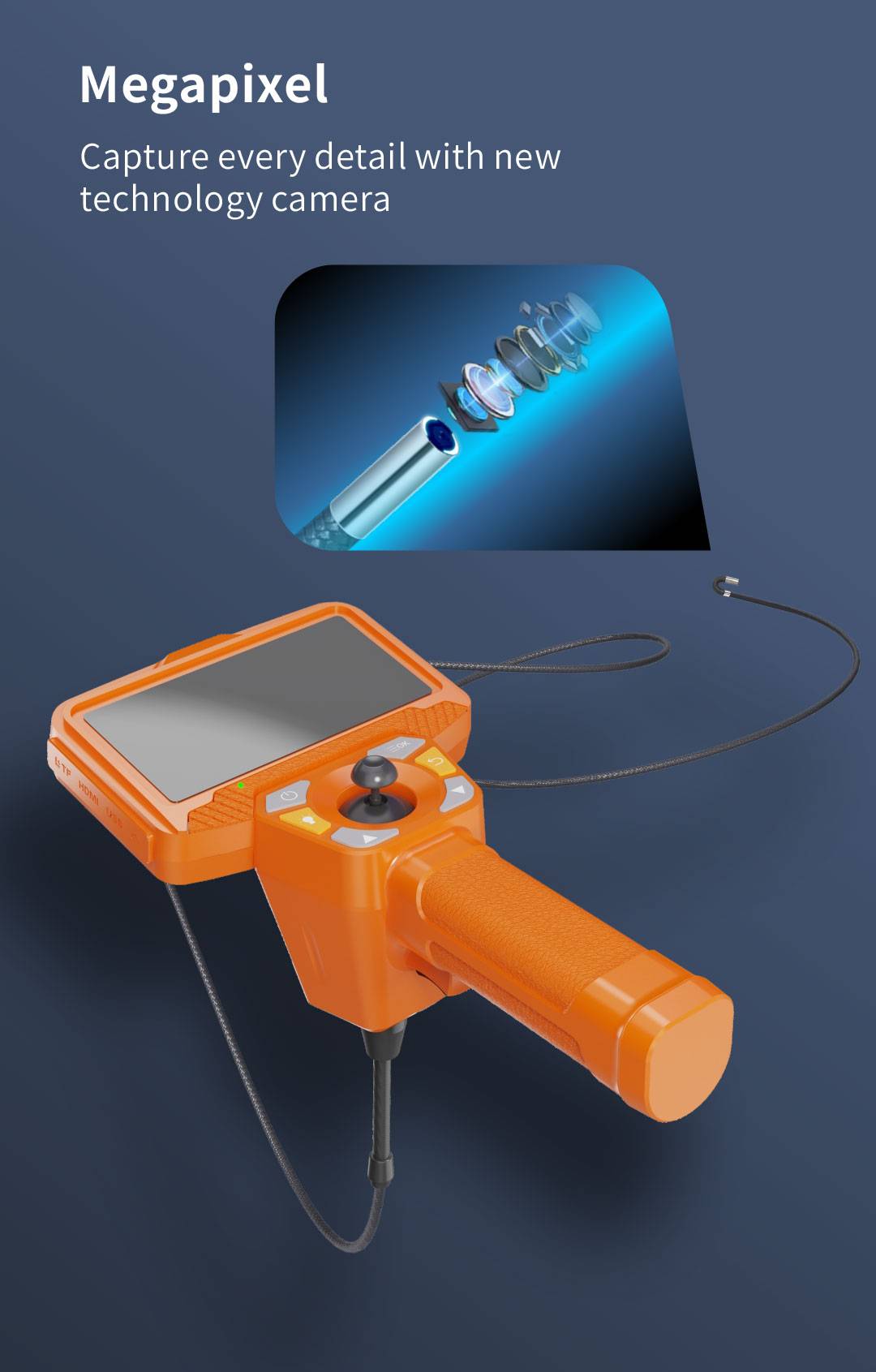

Megapixel
- Capture every detail with new technology camera

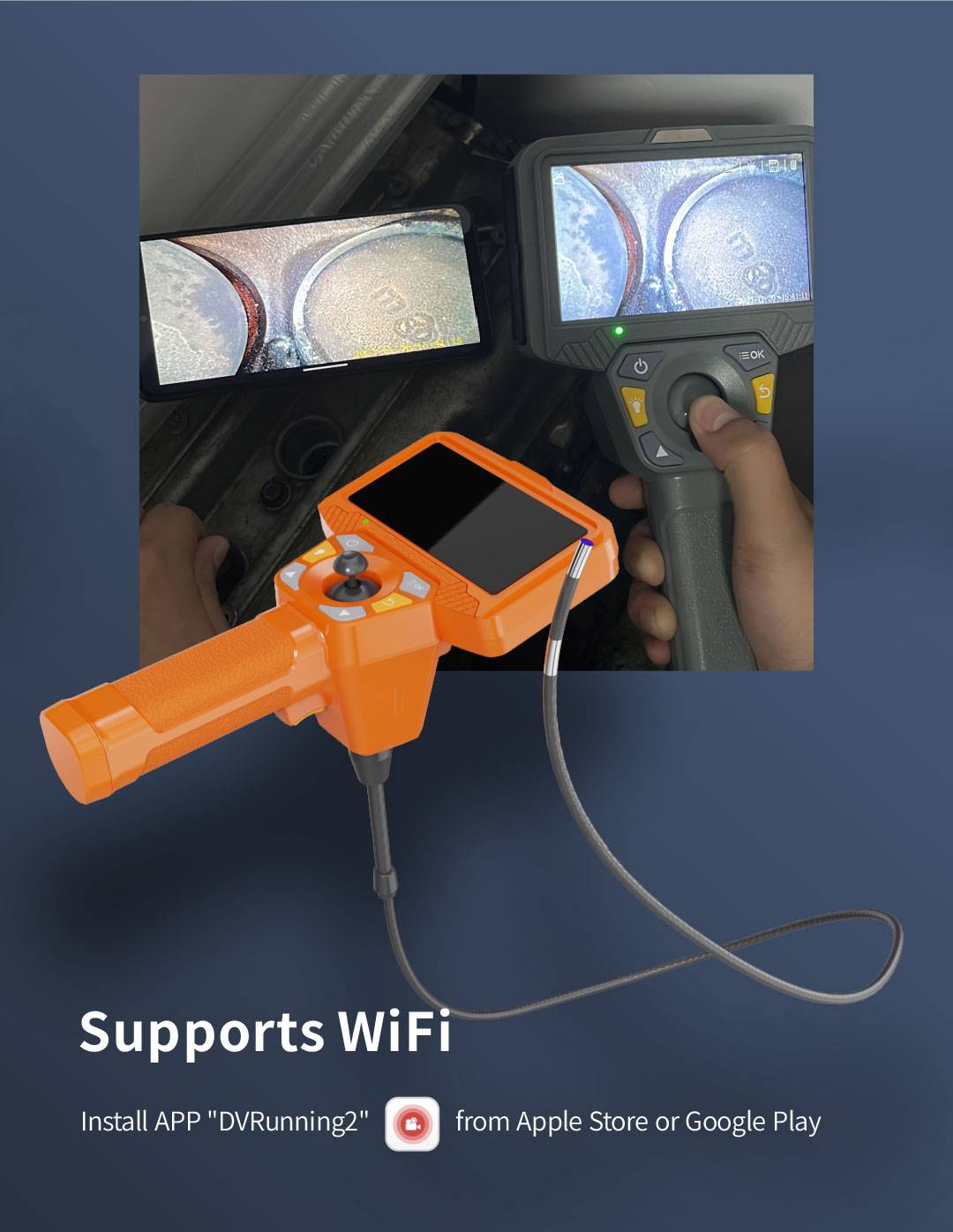

Supports WiFi
Install APP"DVRunning2 from Apple Store or Google Play
LED illumination
8 degree brightness

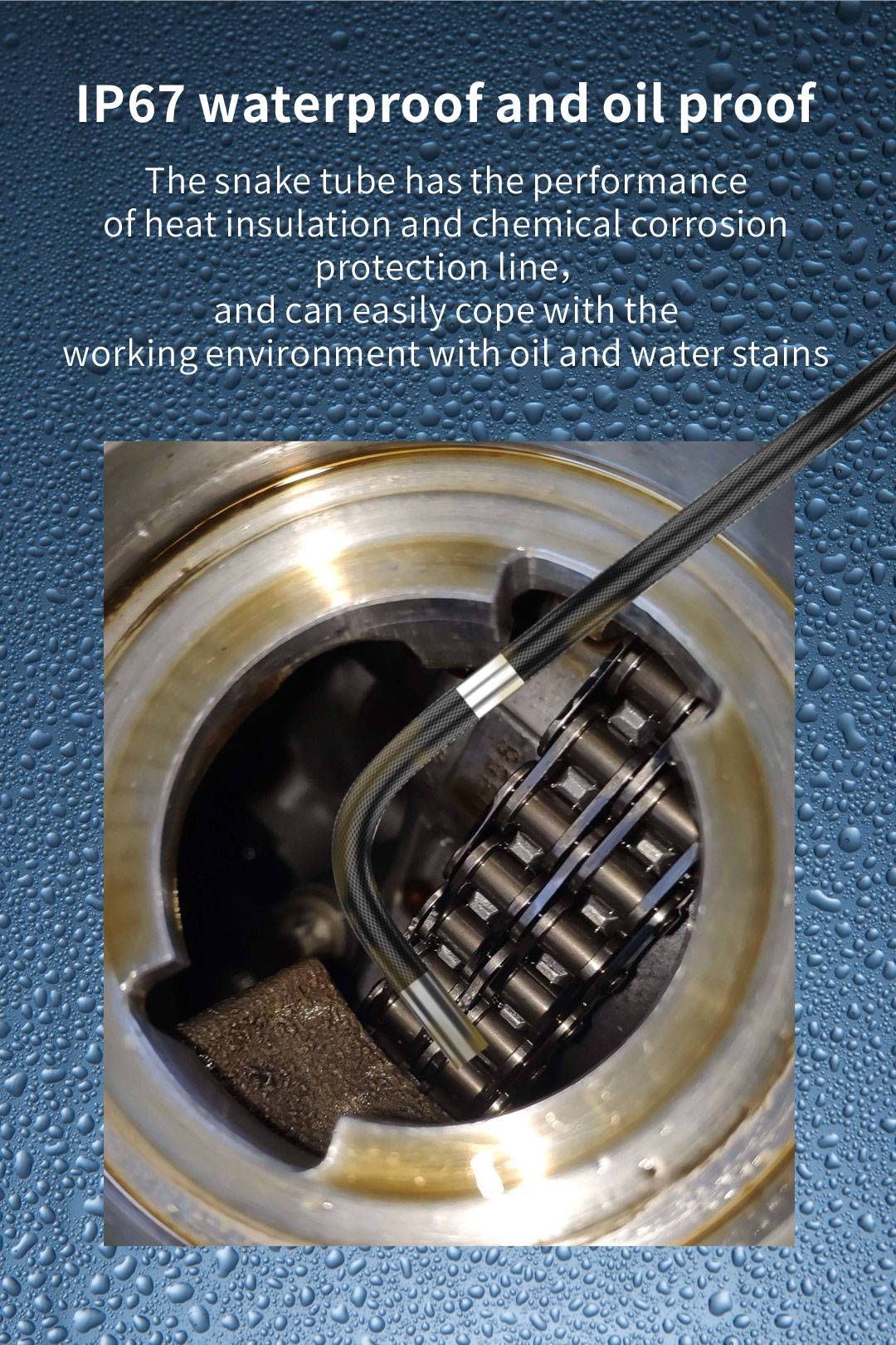

IP67 waterproof and oil proof

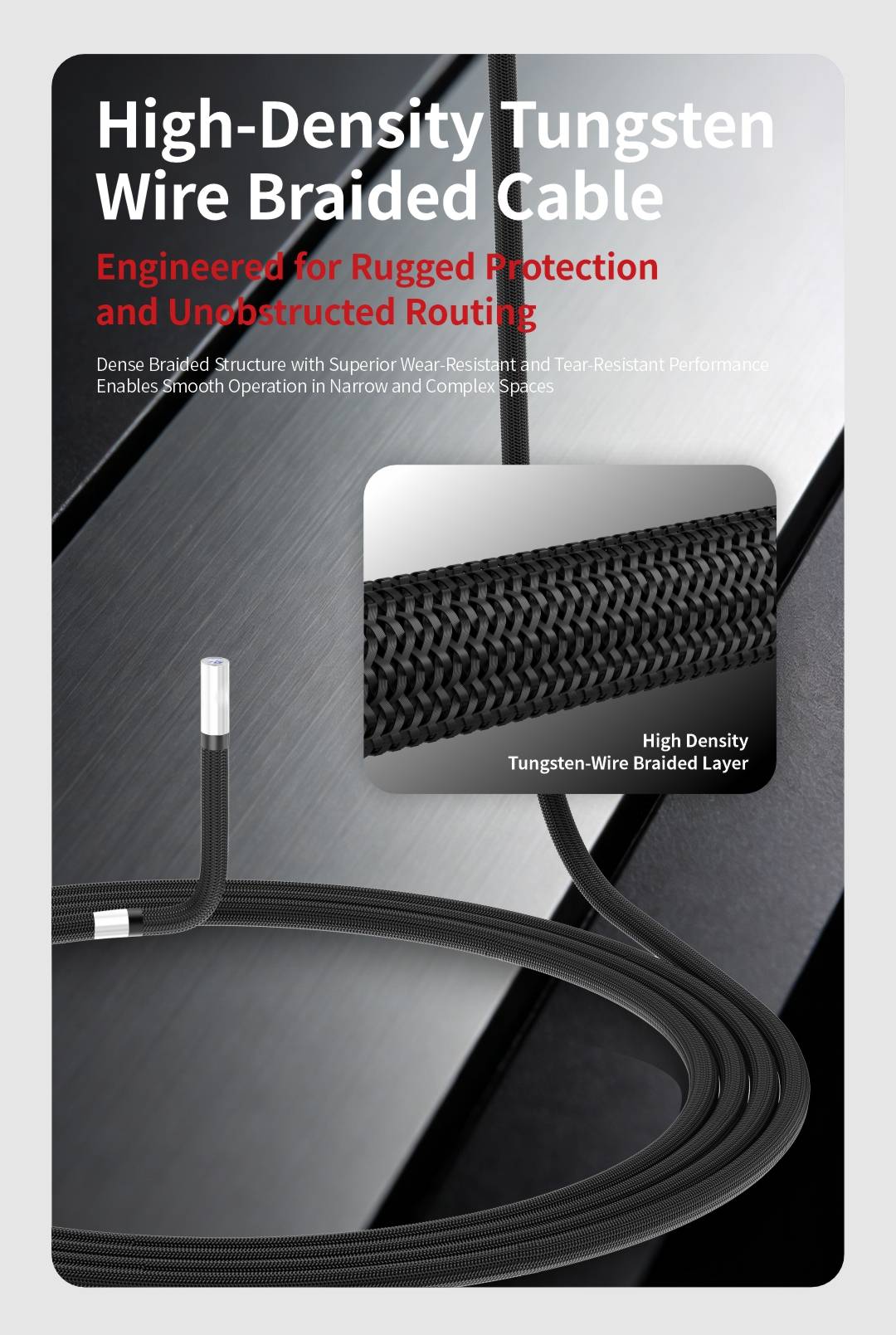

The snake tube has the performance of heat insulation and chemical corrosion protection line
and can easilycope with the working environment with oil and water stains

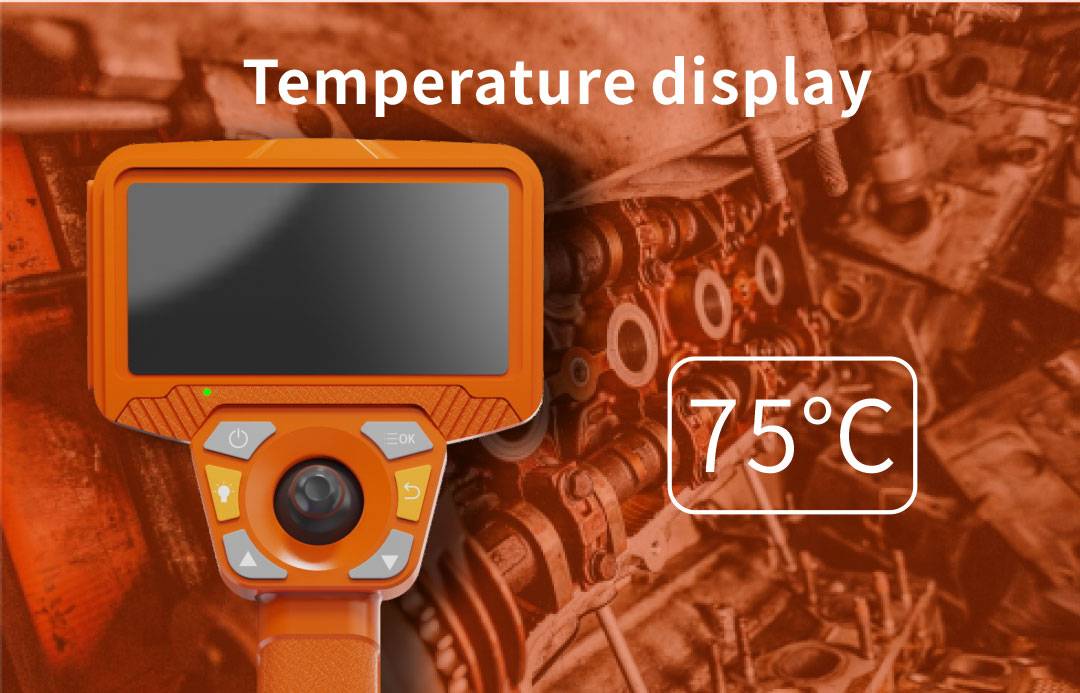

Temperature display

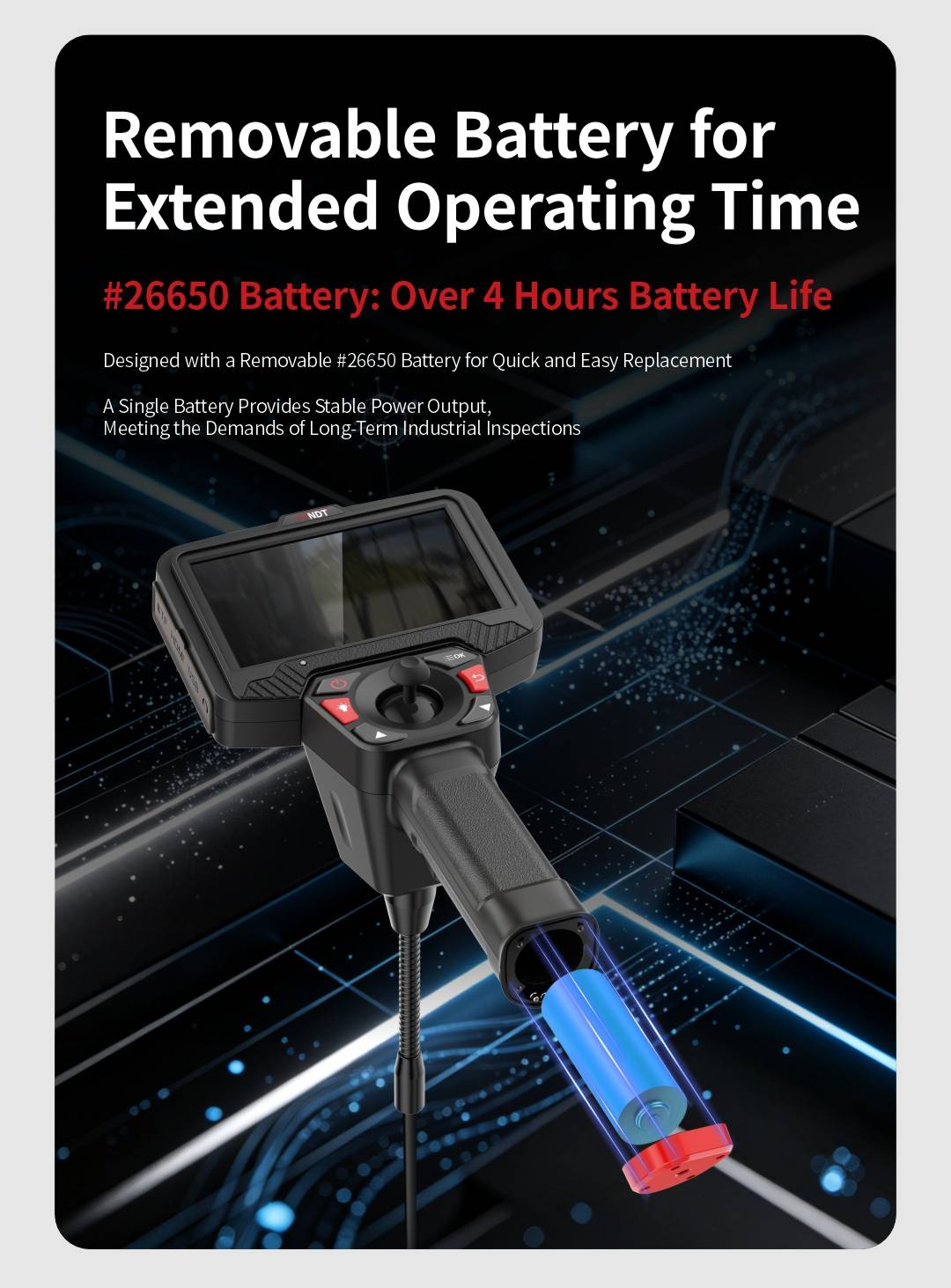

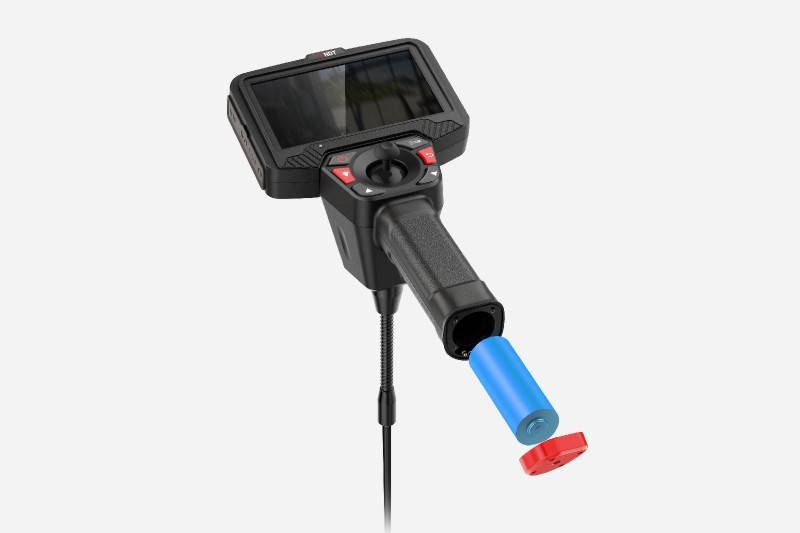

Use 26650 battery
Long term endurance, coping with various complex environments and improving efficiency

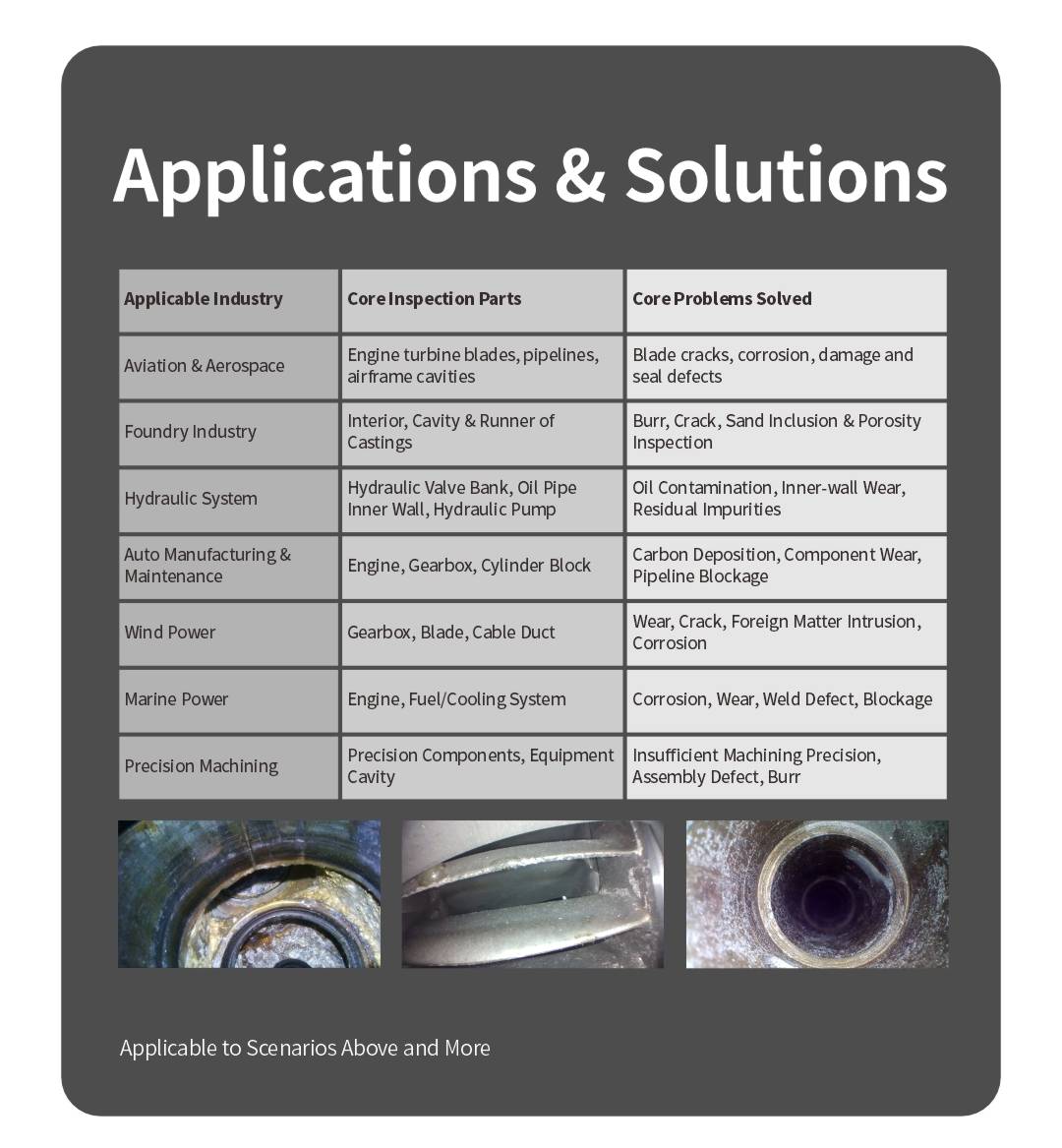

Application
It has a wide range of applications and can be used in a variety of endoscope detection scenarios

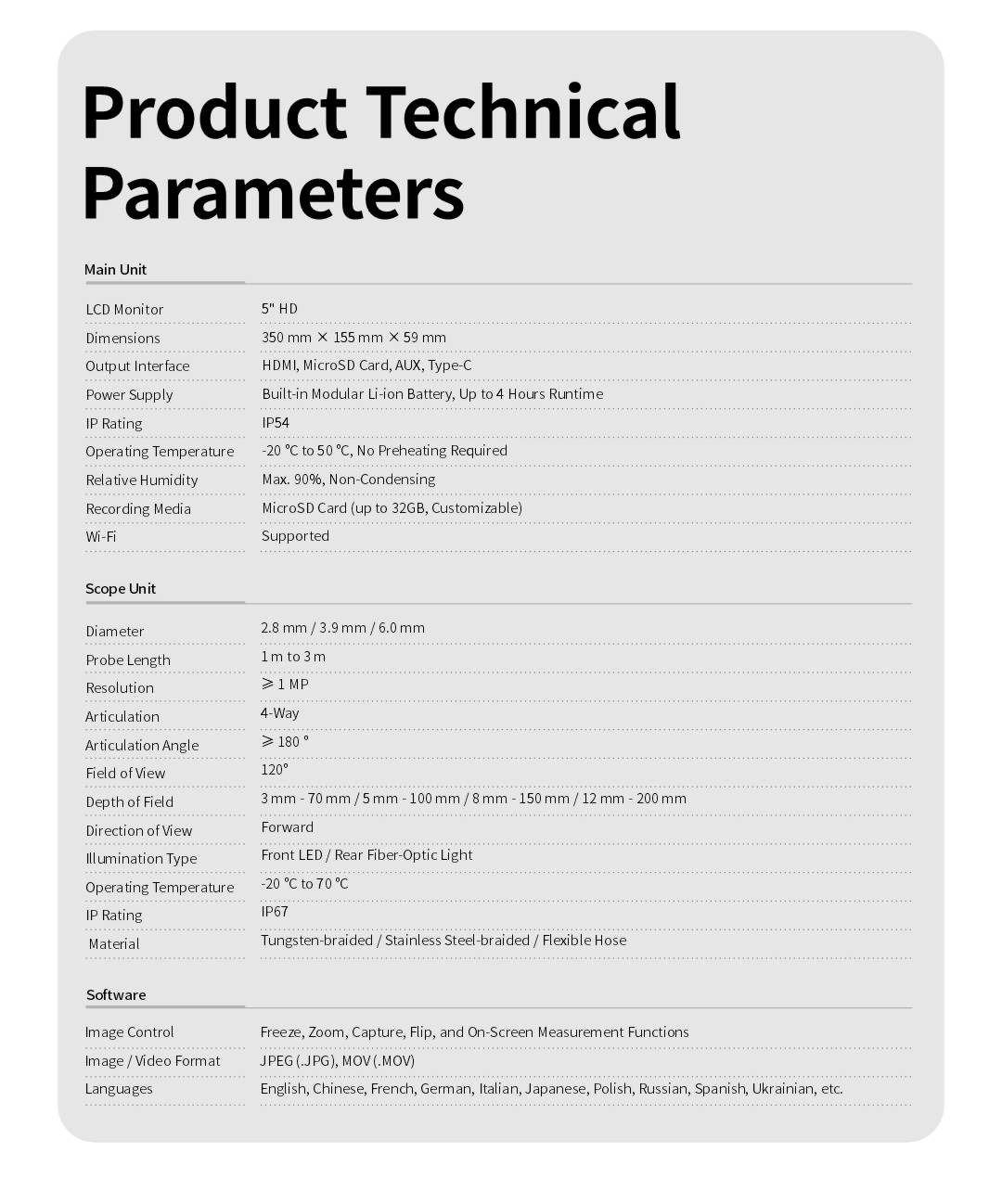

| Prduct Name | VS-LA series Portable industrial endoscope | ||
| Use environment | Suitable for automobile manufacturing, medical pipelines, ship power, municipal drainage, mechanical casting, construction bridges, precision casting, special inspection industry, aerospace, stone chemical industry, energy power, rail transit, search and rescue, security and drug control, automobile maintenance, secret investigation, and product maintenance | ||
| Product technical parameters | Host | Display | 5" HD large screen |
| Dimension | 265*140*132.7mm | ||
| Output | Type-C, AUX, TF card, HDMI | ||
| Power | 26650 battery, Working time > 4h | ||
| IP Grade | IP54 | ||
| Operating temperature | -20°C~50°C, Low temperature without preheating | ||
| Storage Temperature | -20℃~60℃ | ||
| Relative Humidity | Max 90%, No condensation | ||
| Storage card | Standard32GB TF card,Max 128GB | ||
| Camera Probe | Probe Diameter | 2.8/3.9/6mm | |
| Pixel | ≥1.0MP | ||
| Length | 1~3m | ||

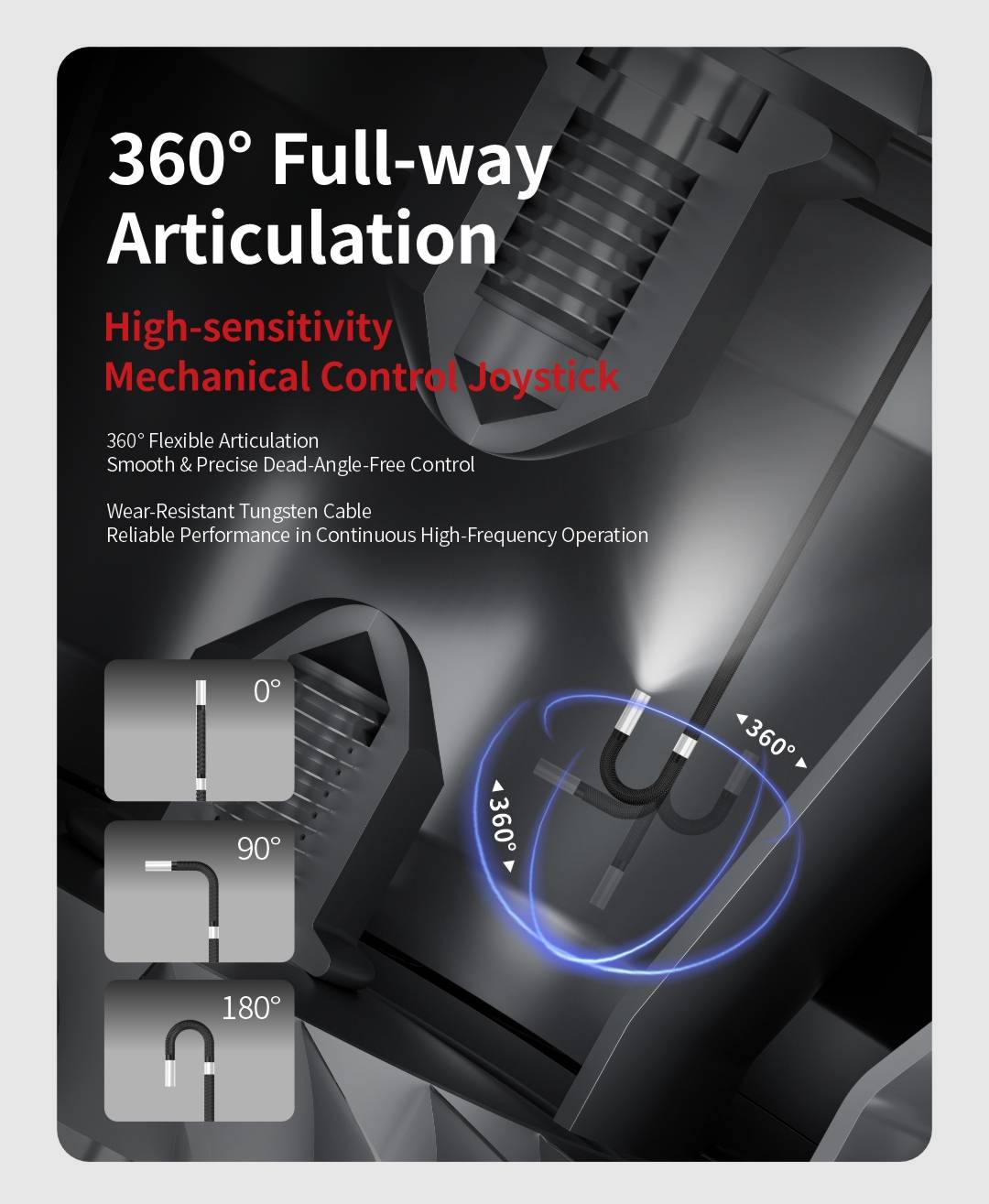

| Articulation | 360° full way articulation | ||
| Max swing head Angle | >180° | ||
| DOF | 3-70mm/5-100mm/8-150mm/12-200mm | ||
| FOV | 120 ° | ||
| Viewing angle | Front view | ||

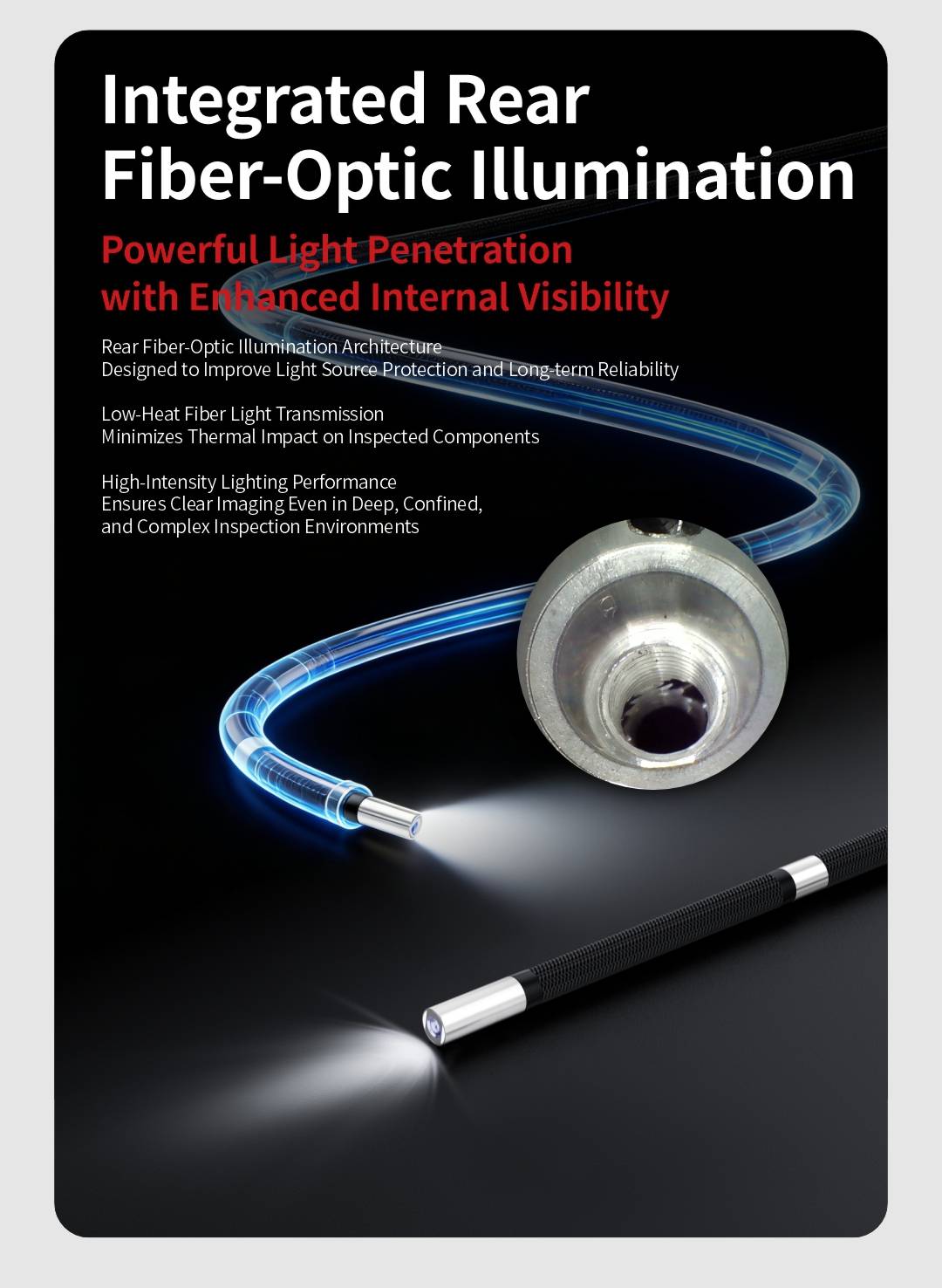

| Illumination | Rear LED Optical fiber lighting/ Front LED lighting (optional) | ||
| Operating Temperature | -20℃~70℃ | ||
| IP Grade | IP67 | ||
| System / software | Image / video format | IImage:JPEG(JPG),Video:MOV | |
| Image control | Freezing, zooming, photographing, flipping, video playback and analog ruler functions | ||
| System language | Chinese, English, German, French, Russian, Spanish, ltalian, Polish, Japanese, Ukrainian,etc. | ||
