In high-end manufacturing and precision maintenance sectors—such as aerospace and power generation—invisible internal hazards, inaccessible confined spaces, and the inefficiency of traditional inspection methods have long been persistent industry pain points. With years of deep expertise in the field of industrial endoscopy, Shenzhen VSNDT introduces the TJ Series Modular Endoscope. Featuring scenario-specific design, robust high performance, and a highly efficient user experience, this device directly addresses the operational challenges faced by customers in the field, making high-end inspection more stable, faster, and hassle-free.
Modular Design: Rapid Field Assembly and Disassembly—No Delays in Complex Conditions. Equipment such as aviation engines, gas turbines, and high-pressure pipelines often features complex internal structures and limited maintenance access; traditional all-in-one inspection devices are typically bulky and difficult to maneuver.

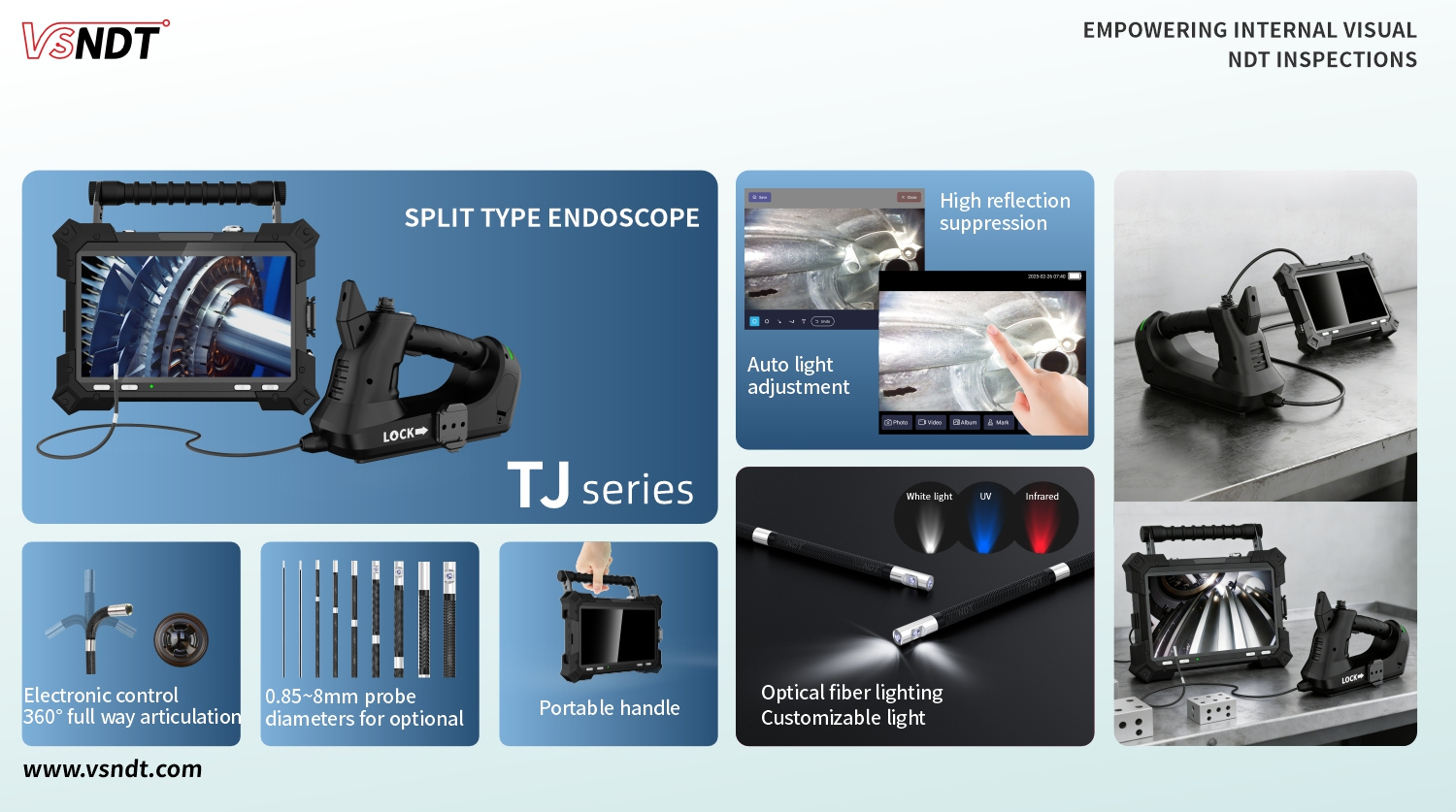

The TJ Series features a modular design with a detachable handle, allowing the main unit and handle to be separated. A single aviation-grade connector enables rapid assembly and quick probe cable replacement, significantly reducing on-site preparation time.
With a selection of probe diameters ranging from 0.85 mm to 8 mm and customization cable lengths from 1 m to 10 m, the device can easily penetrate tiny apertures, deep cavities, and curved channels. It enables comprehensive internal inspection without the need for extensive dismantling, thereby minimizing disassembly-related wear and tear while reducing equipment downtime costs.
The handle offers full 360° motorized articulation, with a bending angle of ≥170°. This ensures zero blind spots—even in the deepest corners of a cavity—allowing for a complete visual assessment from a single probe position and eliminating the need for repetitive probe adjustments to boost inspection efficiency.
HD Imaging + Intelligent Algorithms: Clearly Visualizing and Accurately Identifying Hazards. High-end manufacturing demands zero tolerance for defects such as cracks, corrosion, deformation, and foreign objects; Equipped with a megapixel high-definition camera and paired with an 8-inch, 1920×1080 industrial-grade touchscreen, the device delivers images that are both crisp and vivid.
Featuring adaptive brightness adjustment, automatic white balance, high-reflectivity suppression, and dark-area compensation, the system maintains clear imaging even when facing highly reflective metal surfaces, oil-contaminated environments, or dimly lit internal cavities. This ensures that even minute cracks on turbine blades or corrosion on the inner walls of pipelines are instantly visible at a glance. Supports comparative measurement, virtual coordinates, and real-time dynamic annotation. Inspection data can be marked in real-time for precise measurement, providing a visual display of defect size and location—thereby offering a reliable basis for maintenance decision-making.
Rugged & Durable + Long Battery Life — Built to Withstand Field & Workshop Conditions — Inspections in the energy and power sectors often take place outdoors, at high altitudes, or within equipment rooms; consequently, the device must be capable of withstanding vibration, oil contamination, and extreme temperature fluctuations.
The probe features an IP67 high-protection rating and operates within a temperature range of -20°C to 70°C, ensuring stable performance even in harsh environments.
Equipped with an ultra-high-capacity, removable battery, the device eliminates the need for frequent recharging during field inspections, allowing for a full day of uninterrupted operation.
Featuring a comprehensive array of interfaces—including HDMI, Type-C, USB, and AUX—the device facilitates rapid data export and real-time synchronization to large screens, streamlining team consultations and the archiving of inspection records.
Intelligent & User-Friendly — Quick Adoption, Reduced Training Costs —
Running on an Android operating system, the device offers a dual-control interface featuring both full-screen touch capabilities and physical buttons. Intuitive functions—such as two-finger zooming, one-touch photo/video capture, and video annotation—ensure that on-site engineers can master the device quickly and effortlessly.
Supports multiple languages (Chinese, English, German) and utilizes universal file formats (JPEG/BMP for images, MP4 for video), facilitating smoother report generation and cross-departmental collaboration.
A single device is compatible with a variety of interchangeable lenses—including direct-view, side-view, and dual-view options—and offers a choice of light sources (white light, UV, or infrared). This versatility allows one unit to cover a wide range of inspection scenarios, thereby reducing equipment investment and management overhead.
05 Customization Handles + Full-Scenario Adaptability — Tailored for On-Site Inspections — Supports customized handle designs, allowing customers to flexibly select handle configurations that best suit their specific inspection scenarios and operational habits.
The device meets the requirements for portable operation in the deep cavities and confined spaces typical of the aerospace industry, while also adapting to the complex working conditions found in the energy, power, and nuclear sectors—such as high temperatures, high pressures, and ultra-narrow gaps.
By ensuring a high degree of alignment between the device and actual on-site inspection workflows, the system avoids the operational limitations often associated with generic handles in specialized environments, thereby significantly enhancing both inspection efficiency and operational safety.
From the borescope inspection of aero-engines and quality control of precision components to the routine inspection of energy pipelines, steam turbines, and wind turbine gearboxes, Shenzhen VSNDT TJ split-type industrial endoscope consistently prioritizes the user's perspective. By seamlessly integrating ease of use, reliability, and efficiency into every design detail, it leverages cutting-edge technology to safeguard high-end manufacturing and equipment safety, thereby empowering industries to reduce costs, boost efficiency, and achieve quality upgrades. Shenzhen VSNDT—a National High-tech Enterprise and a designated "Specialized, Refined, and New" Enterprise in Shenzhen—stands as a steadfast guardian of China's high-end manufacturing sector through its professional endoscope solutions.
