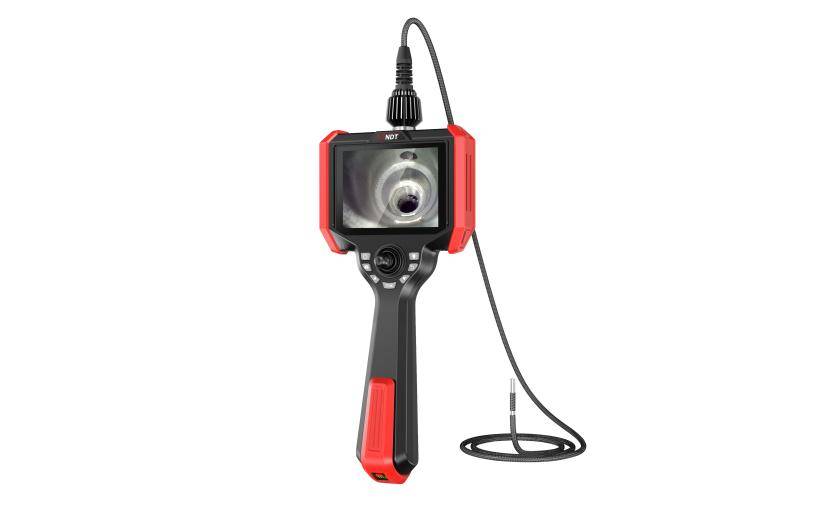

Having been deeply involved in the non-destructive testing (NDT) industry for many years,the vast majority of enterprises encounter two seemingly unsolvable problems: first, probes that are too thick to enter fine micro-holes, and second, insertion tubes that are too short to reach deep long pipelines. Ordinary borescopes on the market feature single probe specifications and fixed tube lengths. One device can only handle a single working condition. Enterprises purchasing multiple sets of equipment significantly drives up costs, while narrow micro-holes, long-distance pipelines, and complex cross-cavities always leave inspection blind spots. Missed detection, rework, and equipment downtime losses become normalized issues. VSNDT proudly launches the new K Series industrial video borescopes, building a complete probe size matrix and gradient tube system. From the 0.78mm hair-thin ultra-fine probe to the 6mm general large-aperture probe, full coverage is achieved. Standard insertion tubes range flexibly from 0.5m to 10m, with special working conditions supporting customizable ultra-long tubes up to 30m. This truly realizes micro-holes accessible, long pipes reachable, one machine for multiple uses, full-industry adaptation, completely solving the size anxiety of industrial inspection and becoming the benchmark universal non-destructive testing equipment for manufacturing, energy, aviation, and automotive maintenance fields.
First, let's break down the core hardware size advantages of the K Series. The eight-grade probe matrix precisely matches the full range of industrial aperture needs. The 0.78mm specification represents the industry's top ultra-fine grade, with a diameter far smaller than conventional hair, specifically designed to tackle ~0.8mm extreme micro-holes such as aero-engine film cooling holes, precision mold ejector pin holes, micro hydraulic runners, and medical catheters. The probe surface undergoes nano-level wear-resistant passivation, preventing scratches on workpiece inner walls during insertion, perfectly avoiding the risk of scrapping precision components. The 1.2mm, 1.8mm, and 2mm medium ultra-fine probes are suitable for automotive fuel injectors, turbine cooling channels, hydraulic fine pipelines, and die-cast small cross-holes, balancing flexibility and imaging clarity, moving through multi-bend complex pipelines without jamming. The 2.4mm and 2.8mm probes adapt to general mechanical fine holes, wind turbine gearbox narrow oil channels, and rail transit brake pipelines, balancing articulation force and tube durability. The 3.9mm and 6mm large-diameter probes are equipped with larger photosensitive chips and higher light source brightness, delivering stronger image detail restoration, suitable for open large-aperture scenarios such as boiler heat exchange tubes, chemical pressure vessels, large engine cavities, and municipal drainage pipelines, doubling large-area inspection efficiency. The eight specifications seamlessly connect, covering the full range of industrial inspection apertures from sub-millimeter micro-holes to centimeter-level pipelines. Enterprises do not need to purchase multiple borescopes with different probes; simply changing the insertion tube switches inspection working conditions, significantly compressing equipment procurement budgets.
The gradient insertion tube length design is equally tailored to differentiated usage needs across all scenarios. The 0.5m–2m short tubes focus on desktop precision quality inspection. They are lightweight and flexible, suitable for precision casting workshop component factory re-inspection, mold cavity internal burr and sand hole investigation, and electronic micro-component internal cavity inspection. Close-range operation has no tube dragging burden; a single person can complete full inspection with handheld operation. The 3m–8m medium-long tubes are the mainstream general-purpose length in the market, suitable for automotive complete machine maintenance, wind turbine gearbox internal inspection, machine tool hydraulic systems, and ship medium and small pipelines. There is no need to disassemble large equipment; the tube penetrates from an external opening directly to the fault point, saving hours of complete machine disassembly time and reducing equipment disassembly damage. The 10m standard long tubes target medium boilers, heat exchangers, mid-section pipelines of chemical reactors, and rail transit locomotive engines, penetrating into the mid-layer cavities of equipment to complete full-section inner wall corrosion, weld crack, and carbon deposit blockage inspection in one pass. For extreme deep-layer working conditions such as oil and gas long-distance pipelines, urban underground pipe galleries, large ship ballast tanks, and nuclear power steam generators, the K Series supports customizable ultra-long tubes up to 30m. The tube interior adopts a fiber-optic composite oxygen-free copper transmission structure, ensuring zero signal attenuation and zero image delay over 30m ultra-long distances. The four-layer composite wear-resistant jacket resists oil, acid, alkali, and moisture, enabling stable operation in underground damp and chemical corrosion environments. No segmented multiple inspections are needed; a single inspection run covers the entire long pipeline, improving inspection efficiency by more than 60%.
In addition to size advantages, the K Series is equipped with a full suite of professional non-destructive testing functions, adapting to factory standardized quality inspection processes. The main unit features a built-in megapixel-level high-definition CMOS image sensor, equipped with dynamic strong light suppression algorithms. In pipeline inner wall oil stain reflection and metal bright surface backlight scenarios, the algorithm automatically balances image brightness, clearly presenting micron-level fine cracks and corrosion spots. The 8-level adjustable rear cold LED light source produces no heat accumulation, preventing high-temperature burns on precision plastics and aluminum thin-walled workpieces. The handle joystick controls 360° omnidirectional electric articulation, enabling observation from any angle without dead angles. There is no need to repeatedly pull and insert the tube to adjust the viewing angle, significantly reducing workpiece collision risks. The entire machine is IP68 fully waterproof, capable of direct immersion in water accumulation, emulsion, and coolant environments. It supports on-site image capture, video recording, and defect text annotation. Inspection data is stored on local memory cards and wirelessly synchronized to computers, automatically generating quality inspection reports to meet ISO quality system archiving requirements. The tube adopts a quick-plug interface, enabling 10-second rapid replacement of different lengths and diameters. One main unit paired with multiple tube sets allows multi-shift rotation use without conflict, maximizing equipment utilization.
Today, industrial sub-sectors continue to upgrade their non-destructive testing requirements. Single-size borescopes can no longer adapt to diversified production and maintenance scenarios. With its complete probe matrix, gradient standard tubes, and 30m ultra-long customization capability, the VSNDT K Series covers eight core industries: aerospace, precision casting, new energy, automotive manufacturing, petrochemicals, power energy, rail transit, and municipal infrastructure. It accommodates both precision microscopic inspection and ultra-long pipeline inspection, both workshop batch quality inspection and outdoor on-site emergency repair. Compared with imported equipment of equivalent specifications, the VSNDT K Series reduces procurement costs by two-thirds, offers domestic 7×24-hour after-sales response, maintains spot supply of tube consumables, and shortens repair cycles by 80%. It is the preferred industrial borescope for domestic manufacturing enterprises seeking cost reduction, efficiency improvement, and domestic substitution. Whether you are a precision component manufacturer, automotive maintenance enterprise, power plant maintenance team, or chemical pipeline inspection unit, the K Series full-size adaptation solution can precisely match your inspection needs, completely bidding farewell to inspection blind spots and achieving standardized, efficient non-destructive testing.
